1. Product Introduction
1.1 Product Description
The conveyor belt material sorting system is the core equipment of modern logistics, manufacturing and recycling industries. Its working principle is to organically combine sensing technology, identification technology, control technology and actuator to realize the automatic identification and classification of materials with different characteristics (such as size, shape, color, material, weight, barcode, QR code, RFID tag, etc.).
1.2 Product Features
Simulated conveyor belt material sorting, no real materials are required, and it is more concise and convenient.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Single-phase three-wire AC 220V ±5% 50Hz
2.2 Dimensions and weight
Size: 480mm*320mm*260mm
Weight: <10kg

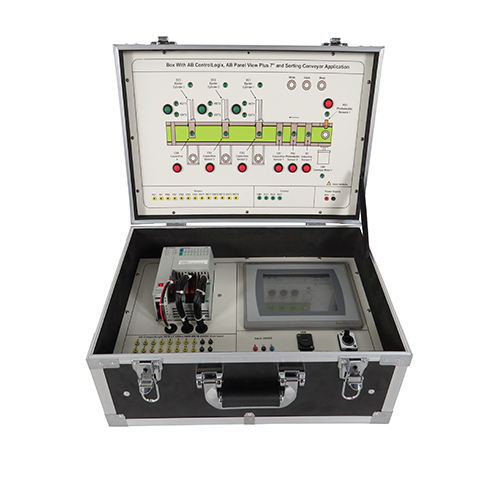

3.Introduction to product component name and function
3.1 Product main part
|
NO. |
Name |
Qty. |
|
1 |
Material sorting panel |
1 |
|
2 |
PLC |
1 |
|
3 |
HMI |
1 |
|
4 |
USB port |
1 |
|
5 |
Net port |
1 |
3.2 Product accessories section
|
NO. |
Name |
Qty. |
|
1 |
Three-core British power cord 3*0.75 square 1.5m tailgate with safety plug |
1 |
|
2 |
2mm electrical safety cable 100cm red |
10 |
|
3 |
2mm electrical safety cable 100cm black |
10 |
|
4 |
2mm electrical safety cable 100cm yellow |
10 |
|
5 |
2mm electrical safety cable 100cm blue |
5 |
|
6 |
2mm electrical safety cable 100cm green |
10 |
|
7 |
Network cable 1.5 meters |
1 |
|
8 |
Fuse 10A 5mm*20mm |
5 |
4. Product teaching experiment list (see the experimental instructions for details)
(1) Conveyor material sorting experiment
