MR021ME Strain Gauges Mechanical Trainer University Equipment
I.Overview
This equipment is for mechanical engineering department or mechanics engineering department in university, it’s for Theoretical and Applied Mechanics, Engineering Mechanics, Solid Mechanics major and other mechanics related department.

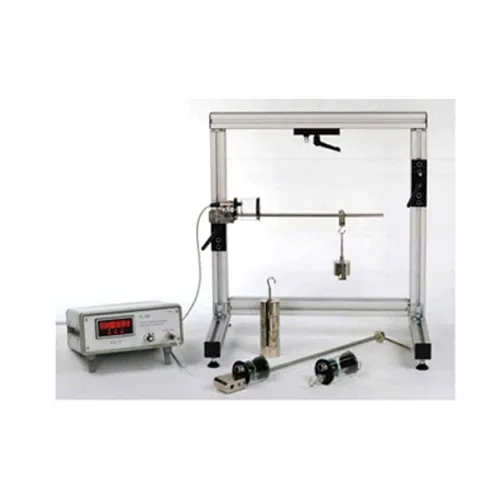

The apparatus demonstrates the use of electrical resistance strain gauge in measuring strain of material under bending, torsion or combined bending and torsion stresses. It is to be used with Universal Base Frame (separately supplied).
Two specimens are used. The specimen is mounted horizontally on a support column at one end. A cantilever beam for bending load, a rod with torsion arm for bending and torsion load and a strip for tension load. Strain gauges are placed on to the specimens. Each gauge is wired to form a full bridge with temperature compensation and zero adjustment. Strain is indicated on the strain indicator.
Instruction manual is also included.
II.Typical Experiments
Fundamentals of measuring with strain gauges
Correlation between mechanical strain and electrical resistance in a strain gauge
Calculation of the mechanical deformations under bending, torsion or combined bending and torsion
III.Technical Data
Structure: aluminum
Bottom with adjustable rubber to adjust the height.
The total weight is less than 200kgs.
Working environment: -10℃~40℃， Humidity<85%
