I. Product overview
1.1 Overview

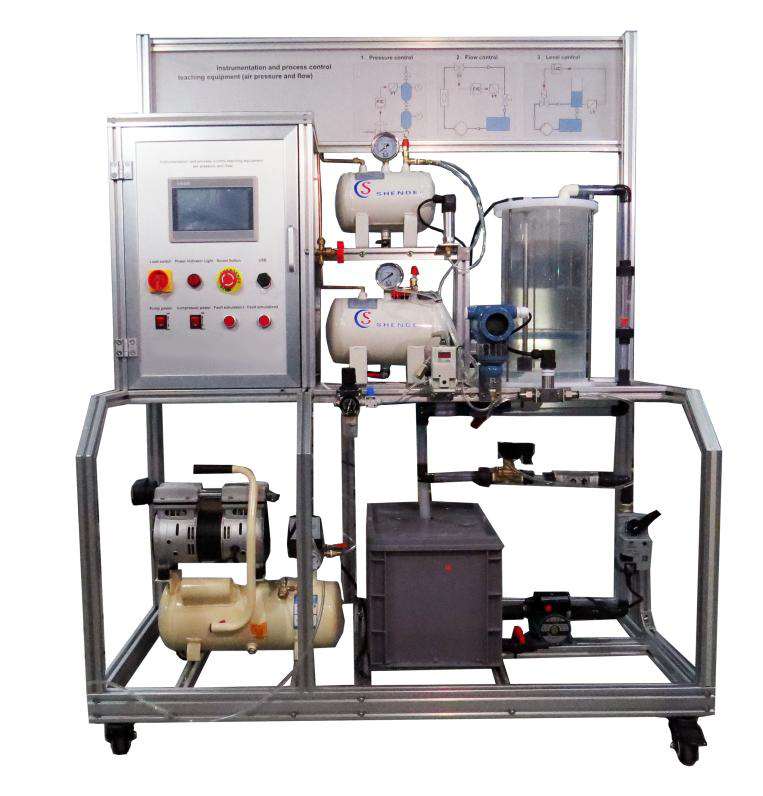

This training device is mainly composed of various types of industrial sensors, pneumatic controls, hydraulic controls, electrical switches, PLC programmable logic controllers, man-machine interfaces, etc., to cultivate students' corresponding knowledge and skills.
1.2 Features
(1) The training platform uses aluminum alloy substrates to build a training platform with a stable structure. Each actuator module is placed on the base plate, which is easy to use and not easy to damage.
(2) The training device is equipped with an electrical control cabinet, the power supply of the system is led out through a safety plug, and the wiring of the training device is connected through a terminal, which is safe and reliable.
(3) The organic integration of mechanical technology (including pneumatic technology), sensor technology, PLC control and communication network technology reflects the characteristics of the modern manufacturing production process. The overall structure adopts open and disassembly type, which can easily replace the modules. The content of the modules is determined according to the principles of productive functions and integrated learning functions, so that the required modules can be easily selected during teaching or competition.
II. Performance parameters
(1) Input power: single-phase 120V±10% 50Hz
(2) Dimensions: 1250mm×600mm×1600mm
(3) Machine capacity: <1.5KVA
(4) Weight: <100kg
(5) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
