II.Key Features: Built for Education
The design philosophy behind the MR036E prioritizes flexibility, safety, and durability:
Robust Construction: The training device utilizes an aluminum column frame structure with an integrated power supply, ensuring stability during repeated use in a classroom environment.
Modular Design: The unit utilizes "hanging boxes" (modular circuit units). This allows educators to add, remove, or swap components to tailor experiments to specific course requirements.
Scalable Curriculum: Whether you are teaching basic circuit theory or advanced inverter logic, the system can adapt by adding or deleting relevant units.
Safety First: The device is equipped with a comprehensive safety protection system, including circuit breakers and emergency stop switches, ensuring a secure learning environment for students.

III.Technical Specifications at a Glance
Understanding the hardware is crucial for curriculum planning. Here are the key performance parameters of the MR036E:
Power Input: Single-phase AC120V ± 10% 60Hz
System Capacity: < 2KVA
Dimensions (HxWxD):
Wind Power Device: 1210mm × 1210mm × 2440mm
Solar Power Device: 1500mm × 1500mm × 2750mm
Training Platform: 1610mm × 800mm × 1350mm
Weight: < 100kg
Operating Conditions: Ambient temperature -10°C to +40°C with humidity <85%.

IV.Breaking Down the System Components

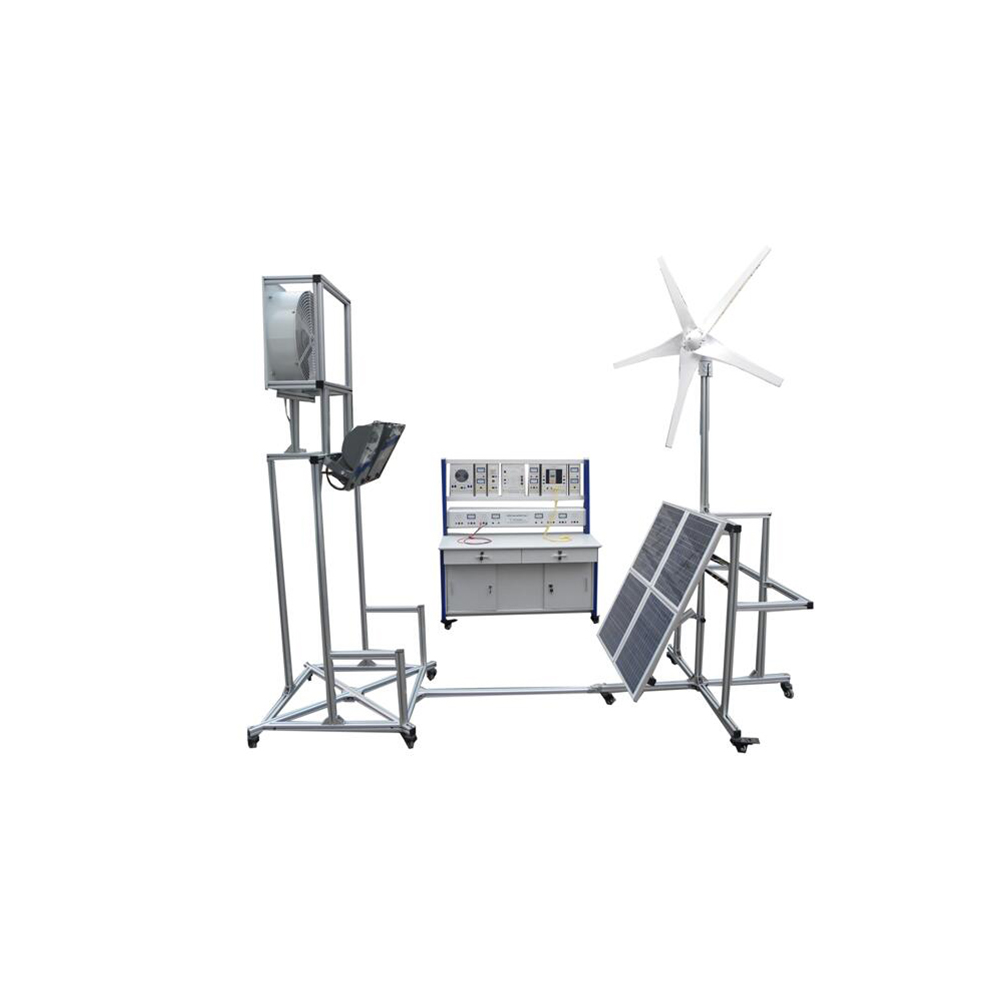

The MR036E is more than just a solar panel and a fan. It is a fully integrated micro-grid environment consisting of:
1. The Main Training Platform
This is the command center of the operation. It houses the power box containing the battery bank, AC output sockets, and measuring instruments. Students can interact with the AC power distribution panel, the circuit breaker, and the emergency stop switch to understand power flow and safety protocols.
2. Generation Units
Solar Photovoltaic Panels: Real PV panels mounted on a sturdy frame.
Wind Turbine: A functional wind turbine unit paired with a 600W Solar Simulator and a Blower. This allows the system to simulate different wind speeds and solar intensities, enabling consistent experiments regardless of the weather outside.
3. The "Hanging Boxes" (Supporting Modules)
These modular units are the heart of the educational experience:
Controller Box: Manages power flow from the sources to the batteries. It notably includes an interface for data collection over a WAN or LAN, allowing for remote monitoring and data analysis—a key feature for Industry 4.0 readiness.
Inverter Box: Demonstrates the critical process of converting DC power (from batteries and panels) to AC power (for standard appliances).
Instrument Boxes (x4): For measuring voltage, current, and power at various points in the circuit.
Load Box: Provides resistive loads to simulate real-world energy consumption.

V.Hands-On Learning: Example Training Projects
The MR036E is designed to facilitate a wide range of experiments, from basic introductions to advanced data analysis:
Fundamentals: Understanding the physics and characteristics of Solar Energy.
Fundamentals: Understanding the mechanics and characteristics of Wind Energy.
Practical Application: Wind Power Training (Turbine output vs. wind speed).
Practical Application: Solar Power Training (Panel output vs. light intensity/shading).
System Integration: Collection and analysis of training data for hybrid wind and solar power systems.

VI.Conclusion
The MR036E Didactic Trainer represents a vital tool for technical education. By combining physical generation hardware (wind turbine, solar panels) with interactive control modules and data acquisition capabilities, it provides students with the tactile and analytical skills required in the modern renewable energy workforce.
For educators looking to move beyond static diagrams and into the dynamic world of hybrid energy systems, the MR036E offers a complete, scalable, and safe solution.
