In the world of industrial automation, understanding PID (Proportional-Integral-Derivative) control is non-negotiable. Whether you are managing the temperature of a chemical reactor, the flow in a pipeline, or the pressure in a pneumatic system, the principles remain the same.

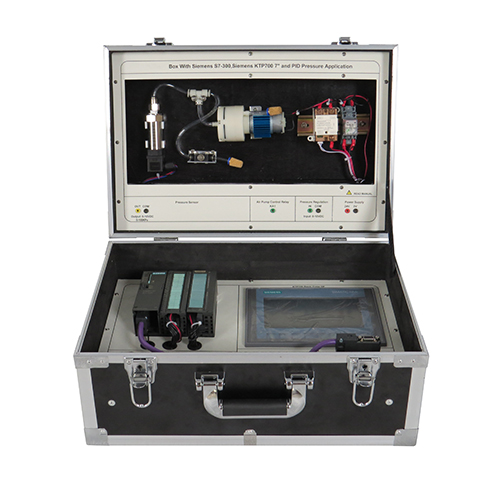

But how do you teach these abstract concepts without a massive, noisy factory floor? Enter the MR536E Box—a complete Siemens training system built into a portable suitcase. Today, we are reviewing this powerful tool, focusing specifically on its crown jewel: Pressure PID regulation.

I.Product Introduction: The Suitcase Lab
The MR536E is not just a PLC trainer; it is a self-contained, functional process automation station. At its heart lies the robust Siemens S7-300 (312C CPU) and a Siemens KTP700 Basic HMI.
Unlike software simulations, this box interacts with the physical world. It uses a 24V dual-pressure micro vacuum pump to generate real airflow and pressure changes. A 0-100 kPa pressure sensor feeds live data back to the system via a precision SM 334 analog module.
Why this matters for students:
Instead of watching lines of code scroll by, students look at the HMI screen and see the actual pressure curve reacting to their tuning parameters. They can hear the vacuum pump spin up or slow down as the PID controller calculates the error and corrects the output.
Key Learning Outcome: Students move from "theory" to "kinesthetic learning" by observing dynamic pressure responses in a quiet, safe, desktop environment.

II.Technical Specifications: Built for the Classroom
Before we get into the experiment, let's look at the hardware that makes this possible.
Basic Parameters:
Power Supply: Single-phase 3-wire 220V 50Hz (Standard wall outlet).
Environment: 0°C to 60°C, suitable for labs and classrooms.
Footprint: 477mm x 315mm x 260mm (Easily stored on a shelf).
Weight: <15kg (Truly portable).
Core Equipment List:
Controller: Siemens 312C CPU (The brain).
I/O: Siemens Analog Module (For precise sensor reading & pump control).
HMI: Siemens KTP700 Basic DP (7" Touch Screen).
Actuator: Micro vacuum pump (DC24V) with aluminum heat sink.
Safety: Intermediate relays and fused protection circuits.

III. The Hands-On Experiment: PID Pressure Regulation
The core experiment listed in the manual is "PID Regulation of Pressure." Here is how the MR536E brings this algorithm to life.
The Setup
The system creates a closed-loop environment:
Setpoint (Target): You enter a desired pressure (e.g., 50 kPa) on the KTP700 touch screen.
Process Value (Actual): The pressure sensor reads the current pressure inside the system.
Error: The CPU calculates the difference (Setpoint - Actual).
Output: The PID logic inside the S7-300 sends an analog signal to the vacuum pump to speed up (build pressure) or slow down (vent).
The Learning Process: Tuning
Using the MR536E, students perform three levels of tuning to see the effects in real-time:
Step 1: The "P" (Proportional) - The Reactor
Action: Set I and D to zero. Increase Kp.
Observation: The pressure rises quickly but settles with an offset (steady-state error). The pump tries hard but never quite reaches the target line perfectly.
Step 2: The "I" (Integral) - The Eliminator
Action: Add a small Ti value.
Observation: Watch the pressure curve slowly inch towards the exact setpoint. The offset disappears. However, if the I term is too high, the pressure will start oscillating (wavy lines) as it overcorrects.
Step 3: The "D" (Derivative) - The Brake
Action: Add a Td value.
Observation: The pressure line moves smoothly to the target with almost no overshoot. The derivative acts as a brake, predicting where the pressure is going and slowing the pump down before it crashes past the setpoint.
Visual Feedback on the KTP700
The Siemens HMI is pre-configured to show a trend view. Students can watch the "Green Line" (Setpoint) meet the "Yellow Line" (Actual Pressure).
Bad Tuning: Waves, shaking, or slow lag.
Good Tuning: A crisp "S-Curve" that hits the target and holds steady.

IV. What's Included in the Box?
The MR536E comes fully equipped. You don't need to buy sensors or wires separately.
The Hardware: Cabinet, Power supply, S7-312C, Analog module, KTP700 HMI, and Vacuum pump.
Cables: Power cable (1.5m), MPI download cable (for PC to PLC), and a massive set of 2mm safety electrical cables (10+10+5+5+5).
Consumables: 5x Fuses (Because students will short things out while learning—safety first!).
Documentation: USB drive containing manuals and sample projects.

V.Conclusion: Why the MR536E Works
Software simulation is great for learning syntax, but pressure is physical. When you tune the PID parameters incorrectly on the MR536E, you don't just see a red "error" flag on a screen—you hear the vacuum pump struggling or see the needle on the HMI graph flutter nervously.
This immediate, physical feedback creates a "lightbulb moment" for students. They learn that:
Kp gives strength.
Ki removes error.
Kd provides stability.
For any technical college, university, or corporate training center looking to teach Siemens PLC programming and Process Control, the MR536E Box is a portable, safe, and incredibly effective solution.
Ready to move beyond the simulation? Plug in the MR536E, set a setpoint of 60 kPa, and watch the magic of closed-loop control happen right before your eyes.
