Open wiring electrical installation is one of the most fundamental and essential skills in residential and small commercial electrical construction. It features simple operation, intuitive circuit layout and convenient maintenance, making it the core training content for electrical beginners and vocational skill teaching. Today, we will take theMR602E Electrical Installation and Operation of Open Wiring training device as the core, and comprehensively analyze its product positioning, core advantages, technical parameters, component composition and practical teaching functions, helping everyone fully understand this professional electrical training equipment.

1. Product Overview: Build a Standard Household Electrical Training Environment

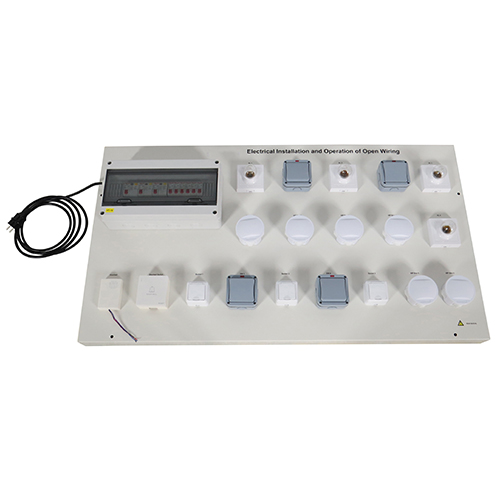

The MR602E open wiring electrical installation and operation training device is professionally developed for residential and small commercial space electrical teaching and skill assessment. It integrates the full set of core components of household electrical systems, perfectly simulates daily household power supply, lighting control, visitor interaction and other core electrical scenarios.
Different from single-functional electrical training equipment, this device builds a complete and standardized basic power environment covering the whole process from power input protection, line connection and distribution to terminal electrical equipment control. It not only meets the basic electrical operation training needs, but also takes safety and operability as the core design concepts, allowing trainees to master standard electrical installation specifications and safe operation habits in a simulated real scene.

2. Core Product Features: Safety & Flexible Practical Training
The MR602E training device stands out in electrical teaching equipment relying on two core advantages, which solve the pain points of single training function and potential safety hazards of traditional experimental equipment:
2.1 Flexible and Diversified Lighting Control Training
The device is equipped with a complete dual-control switch and incandescent lamp combination module. Trainees can complete the wiring debugging and operation practice of dual-control lighting circuits. This function simulates the common dual-light control scene in home corridors, bedrooms and other scenarios, enabling learners to master the wiring logic and switching operation principles of complex lighting circuits, with strong practical applicability.
2.2 High-Safety Standard Configuration
Safety is the primary premise of electrical training. MR602E is equipped with a professional leakage protection circuit breaker as the core power protection component. It can effectively prevent electric leakage, overload and short-circuit risks during experimental operation, protect the personal safety of trainers and equipment safety, and create a safe and reliable teaching and training environment, which is in line with national electrical operation safety specifications.

3. Standard Technical Specifications: Professional and Reliable Teaching Hardware
As a professional electrical training device, MR602E adopts standardized industrial and civil electrical parameters, with stable performance and strong simulation authenticity, and its core technical indicators are as follows:
- Power Supply Parameters: Single-phase three-wire AC 220V ±5% 50Hz, fully consistent with the standard household power supply specification, ensuring that the training environment is completely aligned with the actual engineering scenario.
- Overall Dimensions: 1190mm×75mm×650mm, the size is moderate, which is convenient for laboratory placement and centralized teaching management, and meets the layout standards of vocational electrical training classrooms.
- Equipment Weight: Less than 30kg, lightweight design, easy to carry and move, suitable for fixed teaching and mobile skill training scenarios.

4. Complete Component Configuration: Cover Full-Course Electrical Training
MR602E is equipped with complete main equipment and supporting accessories, covering all links of open wiring installation, circuit debugging and equipment operation, with comprehensive training coverage.
4.1 Main Functional Components
The main body of the device integrates multiple core electrical components required for household electrical installation, with detailed configuration as follows:
- Main power switch ×9: Realize the overall power control and circuit segmented control of the device, simulating the household power distribution switch system.
- Incandescent lamp ×4: As the core lighting load, complete lighting circuit wiring and power-on operation experiments.
- Dual control switch ×4: Support dual-control lighting circuit assembly and debugging, master the core technology of household flexible lighting control.
- Junction box ×6: Simulate the line connection and shunt nodes in actual electrical engineering, standardize the open wiring connection process.
- Doorbell ×1 & Doorbell button ×1: Restore the household visitor interaction electrical scene, expand the diversity of practical training projects.
- European socket ×3: Provide standard power supply terminals for electrical equipment, meeting the needs of daily power supply and circuit test.
4.2 Professional Supporting Accessories
The device is equipped with special supporting materials to meet the whole-process operation needs of wiring installation:
- Nylon cable tie (3mm×150mm) ×1: Used for fixing open wiring cables, standardizing wiring layout, and cultivating standardized construction habits.
- 10m 1 square black BVR cable ×1: Special electrical wiring cable, in line with civil electrical wiring specifications, for trainees to complete wiring wiring and assembly operations independently.

5. Core Teaching Experimental Projects: Focus on Practical Skill Cultivation
Centering on the functional characteristics of open wiring electrical installation, MR602E sets up two core practical experimental projects, targeting the most widely used electrical operation skills in daily life and engineering, which are suitable for beginner teaching and skill assessment:
5.1 Dual-Control Switch Usage Experiment
This is a key experimental project for household lighting electrical training. Trainees can complete the whole process of circuit wiring, line inspection, power-on debugging and switch operation through the matching dual-control switches and lighting loads. Through the experiment, learners can deeply understand the working principle of dual-control circuits, master the standard wiring methods of open wiring dual-control lighting, and solve the practical problem of multi-position control of household lighting.
5.2 Doorbell Usage Experiment
Focusing on the household low-voltage interactive electrical scene, this experiment guides trainees to complete the wiring installation and functional debugging of the doorbell circuit. It helps learners master the wiring specifications of low-power electrical equipment, understand the connection logic of signal control circuits, and enrich their practical experience in residential open wiring installation.

6. Summary
The MR602E Electrical Installation and Operation of Open Wiring training device is a professional and systematic electrical teaching equipment. With its complete scene simulation, safe operation environment and rich practical projects, it perfectly fits the teaching needs of residential open wiring electrical installation. It can help electrical beginners quickly master standardized wiring processes, circuit principles and equipment operation skills, and is widely applicable to vocational school electrical professional teaching, social electrical skill training and daily electrical safety practical education.
