DC motors are the core power conversion equipment in electromechanical systems, serving as the key bridge to realize the mutual conversion of electrical energy and mechanical energy. Among numerous DC motor models, theMR609E DC motor stands out with stable performance, excellent load resistance and dual functional characteristics of motor and generator. It is widely used in university electrical teaching experiments, electromechanical demonstration training and basic industrial load simulation scenarios. This article will comprehensively interpret the working principle, core advantages, technical parameters, structural composition and teaching application value of the MR609E DC motor.

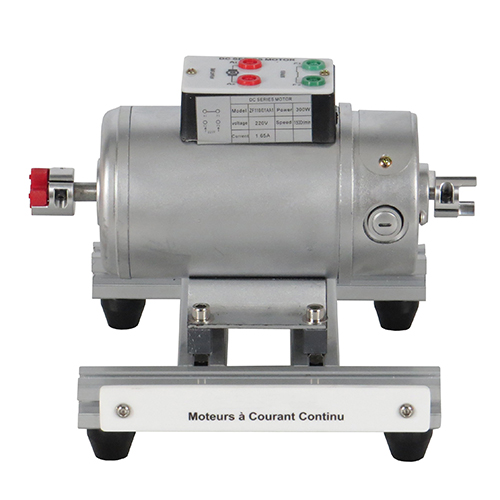

1. Product Overview of MR609E DC Motor
1.1 Working Principle
As a classic series-wound DC motor, the MR609E DC motor is a rotating electrical machine based on electromagnetic induction law and electromagnetic force principle. It belongs to one of the earliest mature electromechanical energy conversion devices. When the DC power is connected, the internal winding generates a magnetic field under the action of current, and the electromagnetic force formed by the interaction between the magnetic field and the armature current drives the rotor to rotate steadily, finally realizing the efficient conversion from DC electrical energy to mechanical rotational energy.
Different from ordinary DC motors, the MR609E series-wound structure has dual working attributes: it can operate as a motor to output power, and can also be used as a generator to convert mechanical energy into electrical energy, with extremely high application flexibility in teaching and experimental research.
1.2 Core Product Features
The MR609E DC motor is optimized for teaching and load simulation scenarios, with two outstanding performance advantages that meet the needs of experimental teaching and short-term variable load operation:
High starting torque: The series-wound structural design endows the motor with excellent starting performance. It can output large torque at the moment of starting, effectively solve the problem of difficult start-up of heavy-load equipment, and adapt to various load starting simulation experiments.
Strong overload resistance: The motor can withstand short-term overload current and overload torque without burnout or failure. It can cope with the current and torque fluctuation in the experimental process, greatly improving the stability and safety of teaching experiments, and is very suitable for student operation and demonstration teaching.

2. Detailed Technical Specifications
The MR609E DC motor has standardized and precise technical parameters, with stable power supply adaptability and lightweight body design, which is convenient for laboratory placement, installation and mobile use. The specific core parameters are as follows:
- Power supply mode: Single-phase two-wire DC 220V ±5%, 50Hz, compatible with conventional laboratory power supply environment, no additional voltage conversion equipment is required
- Rated working parameters: Rated voltage DC220V, rated current 1.65A, rated speed stable at 2000rpm, with uniform operation speed and small error
- Body weight: Less than 20kg, lightweight integrated design, easy to fix, disassemble and carry for experimental teaching
- Core function: Professional load simulation equipment, which can be used as a standard load source for electrical and electromechanical system debugging and experiments

3. Product Structure and Complete Accessories
The MR609E DC motor adopts a simplified and reliable structural design, with clear component division and convenient assembly and wiring. The complete machine is composed of the main body and professional supporting accessories, which can meet the direct use needs of experiments without additional matching parts.
3.1 Main Body Components
The main body of the motor is compact in structure and durable, and the core components are configured as follows:
- Power supply terminals: 4 pieces, with safe and stable wiring interface, convenient for power access and circuit connection in various experimental schemes
- Motor main body: 1 piece, integrated series-wound DC motor core structure, integrating energy conversion and power output functions
3.2 Complete Supporting Accessories
In order to ensure the safety and standardization of experimental operation, the product is equipped with dedicated safety wiring and fixing accessories, with complete configurations:
- Black 4mm electrical safety connection cable: 2 pieces, used for negative circuit connection, with safe insulation and anti-leakage design
- Red 4mm electrical safety connection cable: 2 pieces, used for positive circuit connection, matched with standard experimental wiring terminals
- Fixing strip: 1 piece, used for stable fixing of the motor, preventing displacement and vibration during high-speed operation, ensuring experimental safety

4. Teaching Experiment Value and Application Scenarios
Positioned as a professional teaching experimental motor, the MR609E DC motor is mainly used for basic teaching experiments of DC motors in electrical engineering, mechatronics and other majors. The core conventional experiment project is DC motor application training. Combined with the supporting experimental manual, teachers and students can complete standardized experimental operations including motor wiring, starting operation, speed observation, load test and performance verification.
In the teaching scenario, the MR609E DC motor can intuitively demonstrate the energy conversion principle, starting characteristics and overload resistance of DC motors, help students deeply understand the operating mechanism of series-wound DC motors, and realize the integration of theoretical knowledge and practical operation. At the same time, its dual attributes of motor and generator also provide expanded experimental space for innovative teaching and comprehensive training.

5. Summary
The MR609E DC motor integrates stable performance, safe operation and complete functions. Its high starting torque and short-term overload resistance ensure the reliability of experimental teaching. The standardized parameter configuration, complete accessory system and dual working characteristics make it an ideal experimental equipment for basic DC motor teaching and load simulation. Whether it is daily classroom demonstration, student practical training or basic electromechanical performance research, the MR609E DC motor can provide accurate and stable technical support, and is a cost-effective and practical professional teaching motor.
