In the curricula for electrical automation and power system operation and maintenance, the principles, grid-connection operations, and parallel control of three-phase asynchronous motors and synchronous generators represent core, challenging topics. Traditional instruction often relies heavily on theoretical presentations and simulations, making it difficult for students to intuitively grasp the electrical characteristics, control logic, and troubleshooting techniques associated with generators. To bridge the gap between theory and practice, the MR619E Synchronous Generator Drive Training System was developed. With its modular design, safe and stable performance, and diverse training exercises, it has become a core piece of training equipment for electrical majors in universities and vocational colleges.

I. Core Positioning: Precisely Aligned with Motor Training Needs
The MR619E system integrates typical application circuit units for three-phase asynchronous motors and three-phase salient-pole synchronous generators, serving as a highly targeted, comprehensive teaching and training platform. With clear educational objectives focused on cultivating practical skills, the system enables trainees to familiarize themselves with the electrical characteristics of three-phase salient-pole synchronous generators from the ground up. It allows for a deep mastery of core principles and operational techniques—such as excitation control, grid connection, and parallel operation—while effectively honing students' emergency response capabilities regarding equipment anomalies and system debugging. It is perfectly suited for practical training scenarios in courses related to power system motor control.

II. Key Product Advantages: Modular Design for Safety, Efficiency, and Ease of Use
Compared to traditional fixed or integrated training equipment, the MR619E system offers comprehensive upgrades in structural design, operational flexibility, and safety. It is adaptable to various scenarios, including daily instruction, practical assessments, and skills training, boasting several standout features.
First, the system utilizes an industrial-grade aluminum profile frame that integrates precision measuring instruments and specialized training power supplies. Functional units feature an independent modular design, allowing for easy assembly and disassembly, simple operation, and a robust, wear-resistant structure. This ensures suitability for frequent, long-term training use while significantly reducing equipment wear and maintenance costs.
Second, the motor is equipped with a dedicated mounting base, enabling rapid coupling with a DC motor to configure a generator-load unit. The equipment features neat, transparent wiring, allowing for direct observation of operating conditions and circuit continuity. This visualizes abstract processes—such as motor power generation and grid-connected operation—thereby resolving common teaching challenges where students struggle to comprehend, grasp, or adjust the systems. It comprehensively covers the practical training requirements for multiple courses related to motor control.
Furthermore, the equipment supports flexible, modular configuration. Instructors can add or remove functional modules based on specific training projects and academic levels, adapting to diverse needs ranging from introductory training and advanced grid-connection exercises to comprehensive operational debugging. This high adaptability meets the requirements of differentiated and tiered educational curricula.
Finally, the equipment is equipped with a comprehensive safety protection system, including circuit breakers and emergency stop switches. These features effectively mitigate risks such as short circuits, overloads, and operational errors, ensuring safety for both instructors and students during hands-on practice and making it suitable for open-access campus training environments.

III. Rigorous Technical Specifications: Industrial-Grade Standards for Stability and Reliability
The stability and precision of training equipment are crucial to educational outcomes. The MR619E Synchronous Generator Drive Training Unit is designed to standardized industrial specifications, ensuring stable operation and accurate data that fully comply with training standards.

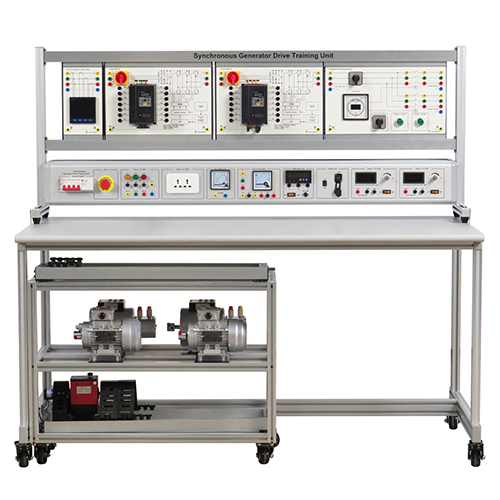

The unit operates on a standard three-phase, five-wire power supply (380V ±10%, 50Hz) with a total capacity of less than 1.5 kVA, ensuring low power consumption and energy efficiency. It is designed for a wide operating temperature range of -10°C to +40°C and relative humidity of less than 85% (at 25°C), making it suitable for various environments such as classrooms and training workshops. With overall dimensions of 1600mm × 600mm × 800mm and a weight under 380kg, the unit features a neat layout and efficient footprint, facilitating easy placement and relocation while fitting seamlessly into standard training classroom configurations.

IV. Comprehensive Hardware Configuration: Full Accessory Suite for One-Stop Training
To facilitate a complete motor training experience, the MR619E comes equipped with a full set of standardized hardware modules and accessories. It enables the execution of end-to-end training projects without the need for additional equipment, offering a comprehensive hardware setup with clearly defined functional roles. 4.1 Main Hardware Architecture
The main unit comprises training modules, a power supply enclosure, a training tabletop, a mobile rack, a motor assembly, and motor control components. With an ample supply of core motors and control components, the system supports simultaneous hands-on practice for multiple groups of students, significantly enhancing training efficiency.
4.2 Core Functional Modules
Equipped with three key functional modules—a three-phase multifunction meter, a variable frequency drive (VFD), and a synchronous grid-connection unit—the system precisely covers essential training functions such as variable frequency speed control, parameter monitoring, and synchronous grid connection. It features real-time data display and intuitive, convenient debugging capabilities.
4.3 Integrated Power Supply System
The power supply enclosure integrates circuit breakers, an emergency stop switch, a three-phase five-wire power interface, and multiple power outlets. It is also equipped with a voltmeter, wattmeter, electronic tachometer, torque/speed/power display unit, and dual-channel excitation power supply. This setup enables comprehensive monitoring of generation, mechanical, and electrical parameters, ensuring accurate data acquisition during training.
4.4 Comprehensive Training Accessories
The equipment comes with a complete set of accessories, including a handheld phase sequence meter, various fuses, safety connection cables, dedicated data cables, teaching software on a USB drive, and a UK-style three-pin power cord. With ample consumables and a full range of accessories, training can begin immediately upon unboxing—eliminating the need for additional purchases and providing a one-stop solution for teaching requirements.

V. Core Training Projects: Focusing on Key Industry Skills
The training projects are designed around the core application scenarios of synchronous generators in power systems. Aligned with the skill requirements of industry roles, they ensure a seamless transition between classroom instruction and actual employment. The core training projects consist of two key modules:
1. Synchronous Generator Parallel Operation Training: Enables students to master wiring standards, operating condition debugging, and core principles of load distribution for multiple synchronous generators operating in parallel, while understanding the electrical logic and practical essentials of parallel operation.
2. Synchronous Generator Grid-Connection Training: Simulates the practical scenario of connecting a generator to the power grid. It focuses on developing students' hands-on skills in phase sequence verification, parameter matching, and smooth grid synchronization, aligning with the core operational standards for power system operation and maintenance roles. The equipment clearly defines safety protocols for practical training, placing special emphasis on ensuring phase sequence alignment before grid-connection or parallel-operation procedures; this helps students cultivate standardized, safe operational habits and mitigates safety risks associated with hands-on tasks.

VI. Conclusion
 High-Quality Equipment Tailored for Modern Electrical Training
The MR619E Synchronous Generator Drive Training System overcomes the limitations of traditional training equipment—such as lack of flexibility, rigidity, and poor safety—by prioritizing modularity, visualization, safety, and practicality. It covers the entire training workflow, including understanding synchronous generator principles, parameter debugging, parallel operation and grid connection, and operational maintenance. It meets the educational need to integrate basic theory with hands-on practice while aligning with industry skill standards. As an indispensable training tool for disciplines such as electrical automation, power systems, and mechatronics, it provides robust hardware support for the cultivation of skilled technical professionals.
