In the fields of industrial manufacturing, agricultural production and daily electrical equipment, three-phase asynchronous motors have always occupied a core position as the most mainstream power drive equipment. With mature working principles, stable operating performance and low maintenance costs, they have become the preferred power source for most mechanical equipment. Today, we will take the MR720E 230V/400V three-phase asynchronous motor as the core to conduct a comprehensive analysis of its product advantages, technical parameters, structural composition and practical application value, helping users and practitioners quickly understand this high-cost-performance motor device.



1. Product Overview: Core Advantages of MR720E Three-Phase Asynchronous Motor
1.1 Product Basic Description

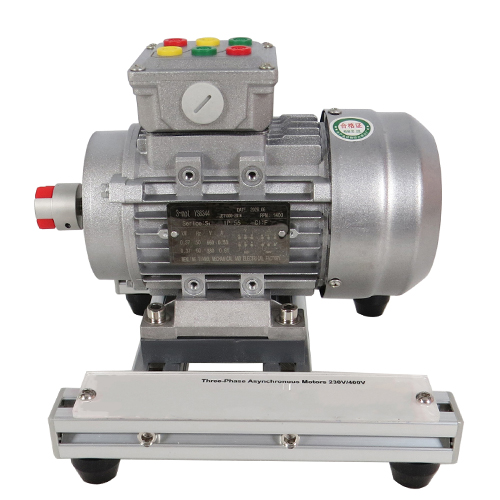

The MR720E 230V/400V three-phase asynchronous motor is a high-performance universal AC motor, which is perfectly compatible with 230V and 400V three-phase power supply environments. It is widely applicable to industrial production, agricultural machinery, civil supporting electrical equipment and multiple scenarios. Different from traditional motors, this model integrates mature asynchronous motor technology and optimized structural design, retaining the core advantages of simple structure, stable operation and convenient daily maintenance. It can serve as a stable and reliable power drive unit for various mechanical loads for a long time.
In actual application scenarios, the MR720E motor shows three prominent core strengths. First, the overall structure is simple, the manufacturing process is mature, and the comprehensive cost is low, which is suitable for large-scale equipment matching and batch use. Second, the operating stability is excellent, with low failure rate in continuous working state, greatly reducing equipment downtime and maintenance costs. Third, it has high starting torque, which can quickly adapt to different load starting and operating requirements, and has strong scene adaptability.
1.2 Outstanding Product Features
On the basis of retaining the advantages of traditional three-phase asynchronous motors, the MR720E 230V/400V model has been comprehensively optimized in safety, appearance and durability, with more prominent comprehensive performance:
First, excellent electrical safety performance. The motor adopts a professional and superior protection design, with a perfect reliable grounding mechanism inside. It can effectively avoid electrical leakage, static electricity and other safety hazards during operation. It can maintain safe and stable operation in complex power supply environments, fully meeting the electrical safety standards of industrial and civil equipment.
Second, optimized structural and aesthetic design. The overall structural layout of the motor is simple and reasonable, with neat internal wiring and compact component matching. On the premise of ensuring performance, the appearance is elegant and regular, which is not only convenient for equipment installation, fixation and later disassembly and maintenance, but also adaptable to various standardized equipment assembly scenarios.
Third, super durability and long service life. The motor is made of high-strength and robust raw materials, and targeted anti-corrosion and anti-oxidation treatment is carried out on key structural parts. It can resist external environmental erosion and mechanical wear effectively. The whole machine is sturdy and durable, which significantly extends the overall service life and reduces the frequency of equipment replacement and later operation costs.

2. Precise Technical Specifications, Adapt to Diversified Working Conditions
2.1 Core Technical Parameters
The MR720E three-phase asynchronous motor is designed for standard three-phase five-wire power supply systems, with excellent power supply adaptability and environmental tolerance, and the core operating parameters are standardized and precise:
- Rated working conditions: Three-phase five-wire system, rated voltage 400V, rated frequency 50Hz, compatible with conventional 230V power supply scenarios, covering most civil and industrial low-voltage power supply environments.
- Operating environment requirements: The adaptable ambient temperature range is -10°C to +40°C, which can adapt to low-temperature outdoor and high-temperature factory indoor working environments. The relative humidity is required to be less than 85% (25°C environment), which can effectively avoid motor dampness, insulation aging and short circuit faults, ensuring stable operation in conventional humid environments.
2.2 Exact Size and Weight
This motor adopts a lightweight and compact integrated design, which is convenient for flexible installation and layout of equipment. The overall dimension is 260mm × 230mm × 235mm, and the net weight is less than 10kg. The small size and light weight greatly reduce the installation space occupation and equipment loadpressure. It is not only suitable for fixed industrial equipment, but also can be matched with mobile mechanical equipment, with strong installation flexibility.

3. Complete Structural Components, Stable and Easy to Maintain
The MR720E three-phase asynchronous motor has a modular and standardized structural design, with clear division of main components and complete supporting accessories. Each part has independent and clear functions, which is convenient for daily inspection, fault maintenance and component replacement.
3.1 Main Body Components and Functions
The motor main body is composed of four core components, which cooperate with each other to complete the power conversion and operation process:
- Socket Block (1 set): The core power connection component, responsible for stable access to three-phase power supply, ensuring safe and reliable power transmission for the motor, and providing guarantee for the normal start and operation of the equipment.
- Motor Body (1 set): The main shell and insulation protection structure of the motor, which carries internal components, plays the role of anti-collision, dust-proof and insulation protection, and maintains the stability of the internal operating environment of the motor.
- Motor Rotor (1 set): The core power conversion component. Through the electromagnetic induction principle, it converts electrical energy into mechanical rotational kinetic energy, and is the key component to realize the power output of the motor.
- Motor Base (1 set): The fixed supporting component of the motor, which can stably fix the motor on the equipment base, reduce the vibration amplitude during motor operation, and ensure the stability of the overall operation of the equipment.
3.2 Complete Supporting Accessories
In order to meet the standard wiring and safe power consumption requirements, the motor is equipped with complete 4mm electrical safety connecting cables, with sufficient quantity and complete specifications, covering multi-circuit wiring needs:
- Blue 4mm electrical safety connection cable × 2
- Green 4mm electrical safety connection cable × 2
- Yellow 4mm electrical safety connection cable × 2
- Red 4mm electrical safety connection cable × 2
The matched safety cables have good conductivity and insulation performance, which can meet the standard wiring specifications of three-phase motors, ensure the safety and standardization of equipment wiring, and facilitate users to carry out equipment installation and circuit debugging.

4. Practical Teaching and Experimental Application: Star-Delta Connection Training
In addition to industrial and civil power drive applications, the MR720E 230V/400V three-phase asynchronous motor is also an ideal experimental and teaching device for electrical engineering and mechanical majors. Its compact structure, safe operation and adjustable voltage mode are very suitable for campus teaching and skill training.
The core conventional experimental project supported by this motor is Star-Delta Connection Instruction Experiment. Star-delta connection is the most basic and key wiring and starting technology of three-phase asynchronous motors. Through this experimental training, learners can master the wiring differences, working principles and starting characteristics of star connection and delta connection of three-phase motors. They can also understand the voltage and current changes of the motor under different connection modes, and master the standard operation specifications of motor wiring, debugging and start-up, which lays a solid foundation for subsequent industrial motor operation and maintenance work.
Combined with the professional experiment guide, users can complete the whole process of disassembly, wiring, debugging and operation observation, realizing the integration of theoretical learning and practical operation.

5. Summary and Application Scenarios
The MR720E 230V/400V three-phase asynchronous motor has outstanding comprehensive advantages such as simple structure, safe operation, durable performance, compact size and convenient maintenance. It is compatible with 230V and 400V voltage environments, adapts to a wide temperature and humidity range, and can be widely used in industrial mechanical transmission, agricultural irrigation equipment, civil supporting electrical equipment, electrical teaching experiments and other scenarios.
Whether it is industrial continuous operation, daily civilian matching, or professional teaching and skill training, this motor can maintain stable and efficient operating performance, with high cost performance and strong practicability, which is a reliable universal three-phase asynchronous motor device.
