Detailed technical specifications:

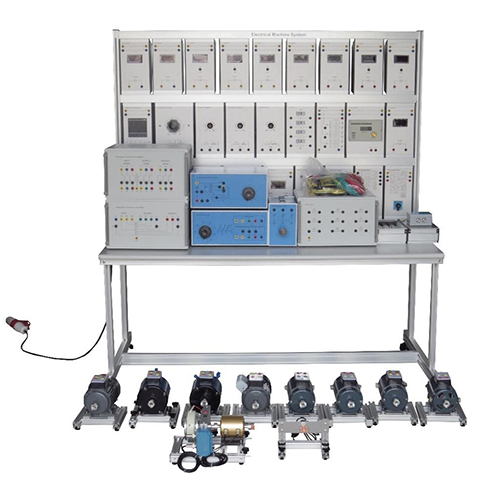

This educational trainer is an electromechanical training device that provides practical instruction in the construction and operation of rotating machines.
It provides construction techniques for four different electric motors.
The trainer allows the following to be constructed:
-Squirrel cage induction motor
-Wound rotor induction motor
-Three-phase synchronous motor
-Capacitor-start split-phase motor
You have the following:
-Toothed belt,
-Set of control functions for high-voltage DC transmission systems
-Workbench for motor winding
-Motor winding kit components
-Manual winding machine
-Body module assembly
-Machine dissection (Work manual)
-Winding equipment (Work manual)
-Desktop workstation (EMS)
-Resistive load
-Variable three-phase power supply
-Three-phase regulator
-Laboratory safety cable set
-Four-quadrant dynamometer/power supply with manual control
Power supply: 120-208V, 3F, 60 Hz.
The teaching bench have a total electrical power of no more than 2.4 kW. If a higher load is required, the necessary components and protections be used.
The necessary components and protections be used to ensure the safety of the equipment and users.
A safe and adequate type of connection be provided.
The necessary integrated protections be in place as a safety measure.
The bench be modular.
Technical Regulations and Standards that the product meet or exceed
The bank comply with certifications and technical standards that guarantee its safety, quality, and educational relevance.
