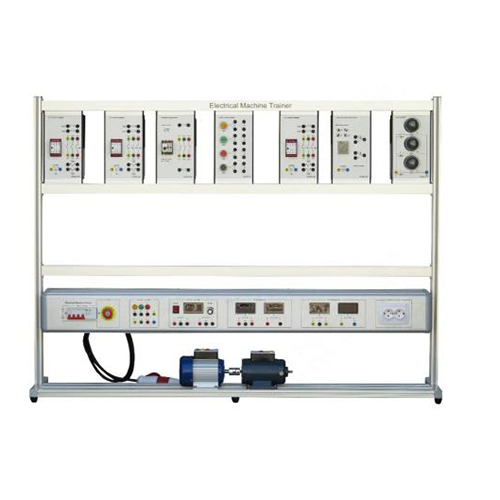

Electrical Protection and Fault Selectivity Bench Teaching Equipment Training System Fauty Components Kit Electrical Training Equipment

Name: Electrical Protection and Fault Selectivity Bench Teaching Equipment Training System Fauty Components Kit Electrical Training Equipment
Brand: Minrry.com
SKU: MR250116EE04
Availability: InStock
Rating: 5 (1 reviews)

Item No.: MR250116EE04

MR250116EE04 Electrical Protection and Fault Selectivity Bench Teaching Equipment Training System Fauty Components Kit Electrical Training Equipment

INQUIRY

Description

MR250116EE04 Electrical Protection and Fault Selectivity Bench Teaching Equipment Training System Fauty Components Kit Electrical Training Equipment

Detailed technical characteristics:
This teaching system provides comprehensive training in digital protection relays, from basic to complex concepts, for protecting electrical installations.
The following topics be covered:
-Remote protection: fault impedance vs. load, line protection, generator loss protection
generator excitation
-Overcurrent and overload protection for AC machines and power transformers, overcurrent protection
overcurrent protection for radial feeders
-Differential protection: current measurement error, sensitivity, and percentage of restricted differential protection restricted
-Directional protection: parallel power lines, overcurrent, comparison, and power
Trainer equipment list:
-Numerical distance relay
-Differential protection numerical relay
-Overcurrent and overload protection using protection relays (Work manual)
-Protection against overcurrent and overload using protection relays (Work manual (teacher))

-Directional protection (Work manual)
-Directional protection (Work manual (teacher))
-Differential protection (Work manual)
-Differential protection (Work manual (teacher))
-Distance protection (Work manual)
-Remote Protection (Workbook (teacher))
-Additional equipment required to perform the exercises
-Workstation
-User Manual
-Protection switch and disconnectors
-Module for inserting faults
-Mounting frame (DIN A4) for EMS workstations,
-Teaching materials
Power supply: 120-208V, 3F, 60 Hz.
The teaching bench have a total electrical power of no more than 2.4KW. If a higher load is required higher load is required, the necessary components and protections be used.
The necessary components and protections be used in order to ensure the safety of the equipment and users.
A safe and adequate type of connection be provided.
The necessary integrated protections be in place as a safety measure.
The bench be modular.
Technical standards and norms that the product meet or exceed
The bench comply with certifications and technical standards that guarantee its safety, quality, and educational relevance.
