In low-voltage electrician instruction, electrical safety training, and electromechanical practical courses at vocational institutions, the installation and commissioning of protective grounding, protective neutral bonding (protective zeroing), and circuit-breaking devices constitute the most fundamental and critical practical training content. The vast majority of low-voltage electric shock incidents and equipment burnout accidents stem from non-standard grounding or neutral bonding systems, as well as the failure or incorrect selection and installation of protective circuit-breaking devices. To truly master the underlying logic of electrical safety, one cannot rely solely on textbook theory; hands-on practice using standardized training equipment is essential.

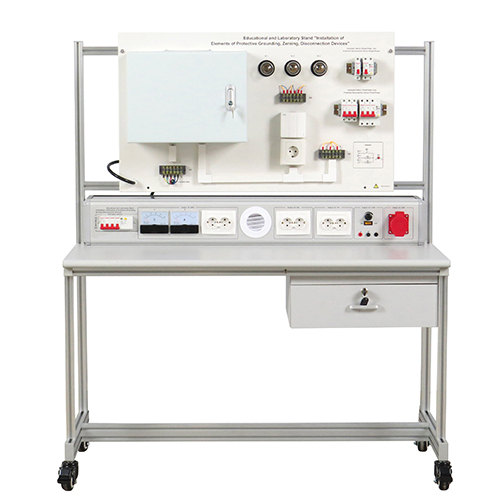

Today, we present a detailed introduction to the MR592E Educational and Laboratory Stand—a training unit designed for the installation of protective grounding, protective neutral bonding, and circuit-breaking devices. Specifically engineered for foundational electrical safety training, this equipment faithfully replicates the low-voltage power distribution safety protection systems found in industrial settings. It covers the entire workflow—from principle verification and equipment installation to fault testing and functional commissioning—making it a core teaching tool for basic electrician training, electrical safety assessments, and school-enterprise skills training programs.

I. Core Principles: Three Major Electrical Safety Protection Mechanisms
The primary educational objective of the MR592E training stand is to enable trainees to intuitively grasp the operating principles and practical distinctions of the three major protection structures—protective grounding, protective neutral bonding, and circuit-breaking devices—and to thoroughly understand the safety protection logic of low-voltage power distribution systems.
1. Principles of Protective Grounding
Under normal operating conditions, the metal casings and frames of electrical equipment are not live; however, in abnormal situations such as insulation breakdown or circuit faults, the metal casing can easily become energized, posing a severe risk of electric shock.
Protective grounding technology involves reliably connecting the conductive metal casing of the equipment to the earth via a grounding device, thereby creating a low-impedance path for the dissipation of fault current. When an electrical leakage fault occurs, the fault current is rapidly diverted to the earth, significantly reducing the voltage of the equipment casing relative to the ground and fundamentally preventing electric shock accidents caused by human contact with the casing. Simultaneously, the fault current triggers protective devices—such as circuit breakers or fuses—to rapidly cut off the power supply, thereby achieving dual-layer safety protection.
2. Principles of Protective Neutral Bonding
Unlike the grounding method, which relies on the earth to dissipate fault current, protective neutral bonding (protection via PE or PEN conductors) does not require the earth to transmit the fault current. The metal casing of the equipment is directly connected to the neutral wire of the power supply system; in the event of a fault, current flows through the path of "equipment casing → neutral wire → power supply neutral point," creating a metallic short-circuit loop.
This method generates an immense short-circuit current instantaneously, forcing the circuit protection device to trip and cut off power immediately. This ensures faster fault clearing and superior protection stability, making it the most widely used safety protection method in industrial low-voltage power distribution systems. The MR592E allows for a visual demonstration of how a short-circuit fault occurs in a neutral-connected system, enabling trainees to clearly distinguish between the applications of protective grounding and protective neutral connection.
3. Operating Principles of Circuit Protection Devices
Circuit protection devices serve as the "safety switches" of electrical systems. Integrating detection components with mechanical operating mechanisms, they provide comprehensive protection against overloads, short circuits, and earth leakage, while supporting manual resetting and repeated use.
For overload faults, the device utilizes the thermal effect of a bimetallic strip element; heat generated by the overload current triggers a mechanical release to cut off the circuit. For short-circuit faults, it relies on the electromagnetic effect of an electromagnetic component to trigger an instantaneous trip. For earth leakage faults, a zero-sequence current transformer detects the residual current difference between the phase (live) wire and the neutral wire; combined with electronic circuitry or an electromagnetic mechanism, it executes circuit interruption, thereby comprehensively covering common fault scenarios in low-voltage circuits.


II. Core Advantages and Product Features of the MR592E
As specialized electrical safety training equipment, the MR592E overcomes the drawbacks of traditional training units—such as cluttered structures, fragility, and limited functionality. Its structural design is tailored to educational settings, offering comprehensive training capabilities and maximizing both safety and practicality. Its core features include:
1. Modular Aluminum Profile Frame – Durable and Easy to Assemble: The equipment features a lightweight aluminum profile frame structure with independent modular training units. This allows for flexible configuration and convenient assembly/disassembly; the unit is robust enough to withstand daily training use and is suitable for long-term, high-frequency instruction.
2. Comprehensive Circuit Configuration – Diverse Training Scenarios: The system integrates a full suite of training components—including various types of circuit breakers, power supply interfaces, load modules, and testing terminals. Circuits can be configured freely to complete various fundamental training exercises covering protective grounding, neutral connection, and circuit protection, thereby meeting standard electrical safety teaching requirements. 3. Dedicated safety protection system for risk-free training: Equipped with comprehensive protection mechanisms against overload, short circuits, and earth leakage, the system allows for the safe simulation of various electrical faults during training. It eliminates risks such as electric shock and equipment burnout, ensuring the safety of both instructors and students.
4. Intuitive principles suitable for diverse teaching scenarios: The equipment features a clear circuit layout and highly visual operating principles, intuitively demonstrating the core logic of low-voltage electrical safety protection. It is suitable for teaching various low-voltage power distribution systems, effectively reducing equipment contact voltage and solidifying students' theoretical foundation in safety.
5. Efficient fault clearing and high safety factor: While meeting loop impedance standards, the protection devices offer rapid response and timely fault interruption, quickly eliminating potential circuit hazards and ensuring a high level of training safety.
6. Comprehensive functionality and high operational reusability: Integrates multiple protection functions (overload, short circuit, earth leakage) and supports manual switching operations. It features clear status indicators, enables selective protection, and supports repeated resetting, resulting in lower training costs and greater operational convenience.

III. Technical Parameters and Basic Specifications
The parameters of the MR592E training bench align with industrial low-voltage power distribution standards, and the training scenarios faithfully replicate real-world working conditions. Key technical specifications are as follows:
Power supply parameters: Three-phase five-wire system, AC 380V
Operating environment: Ambient temperature -10°C to +40°C; relative humidity <85% at 25°C; suitable for standard laboratory and training classroom environments.
Equipment dimensions: 1255mm × 630mm × 1490mm
Equipment weight: <100kg; lightweight design facilitates transport, placement, and storage.

IV. Complete Equipment Structure and Core Component Functions
The MR592E features a clearly defined structural layout, comprising four main sections: the main frame, power supply unit, training modules, and accessories. Each component has a specific function, meeting diverse training requirements.
1. Main structural section
Includes an integrated load-bearing frame, an integrated power supply unit, and a multifunctional operation panel. It provides a stable support structure and operating platform for all training modules, ensuring structural stability and an organized layout. 2. Power Supply Unit (Core Power Module)
Integrates a complete set of power supply, monitoring, and protection components to provide safe, multi-specification power for training: features a 4P circuit breaker with earth-leakage protection for main circuit safety; equipped with voltmeters and ammeters for real-time parameter monitoring; includes AC380V, AC36V, and AC12V sockets and a DC 2–30V power module to suit various low-voltage training scenarios; utilizes a slanted louver design for heat dissipation, ensuring stable, long-term operation.
3. Training Module Section (Core Practical Component)
Covers a full range of low-voltage circuit protection devices and training loads: includes standard 1P/2P/3P circuit breakers and various models with earth-leakage protection, supporting training on both single-phase and three-phase circuit protection; equipped with lamp loads, sockets, lighting switches, terminal blocks, test buttons, and schematic diagrams; supports comprehensive practical training—including wiring, fault simulation, and functional testing—and perfectly aligns with core training requirements for grounding, neutral connection, and circuit protection device installation.
4. Included Training Accessories
Comes standard with tools and consumables such as a digital multimeter, various flat-head screwdrivers, and 5A fuses; requires no additional equipment, allowing for immediate use upon unboxing and greatly enhancing teaching convenience.

V. Core Teaching and Training Projects
Leveraging its comprehensive hardware configuration, the MR592E supports multiple core electrical safety training subjects. Key experimental activities include:
1. Power Supply Unit Energization Test: Understanding the power supply circuit structure, power monitoring, and standard operating procedures for energization;
2. Panel Component Functional Testing: Familiarization with the operating characteristics and usage of circuit breakers, switches, sockets, test terminals, and other components;
3. Single-Phase Protection Device Comprehensive Testing: Installation of grounding and neutral connections for single-phase circuits, as well as the commissioning and verification of overload, short-circuit, and earth-leakage protection functions. When used in conjunction with the accompanying experiment manual, the system supports a wide range of electrical safety training projects. It guides trainees step-by-step—from equipment familiarization and principle comprehension to the independent execution of installation, commissioning, and troubleshooting—enabling them to fully master practical low-voltage electrical safety skills.

VI. Conclusion
The MR592E training unit for the installation of protective grounding, protective neutral connection, and circuit-breaking devices is a professional-grade electrical safety teaching system characterized by clear operating principles, comprehensive functionality, high safety standards, and strong practical applicability. It effectively resolves common teaching challenges—such as abstract theory, a disconnect between theory and practice, and limited training scenarios. Through visual, interactive, and simulation-based training environments, it allows trainees to precisely master core low-voltage power distribution safety technologies and solidifies their practical electrical skills. It is ideally suited for use in vocational college electromechanical programs, pre-job training for electricians, and corporate continuing education on electrical safety.
