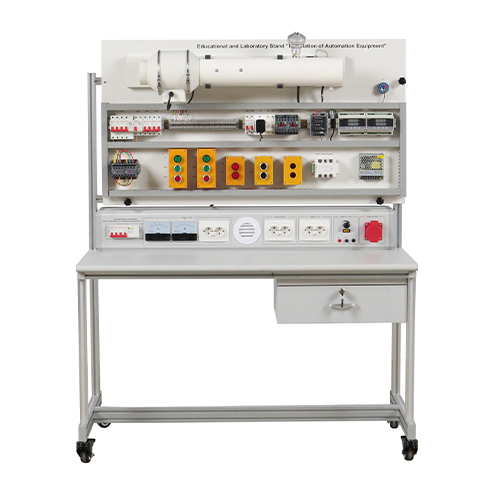

In the era of rapid smart manufacturing development, practical training for disciplines such as mechatronics, automation, and electrical engineering increasingly emphasizes hands-on experience, realism, and systematic learning. The traditional model of combining theoretical lectures with simple practical exercises can no longer meet the industry's demand for skilled technical personnel capable of real-world operations. Designed specifically for universities and vocational colleges, the MR594E Automation Equipment Installation Training & Laboratory Stand aligns precisely with educational needs, offering a standardized, realistic, and safe solution for practical training in automation I.Core Product Positioning
A Comprehensive Training Platform Dedicated to Automation
The MR594E stand is specialized training equipment for core disciplines such as mechatronics, automation, and electrical engineering, focusing on key training modules like automation equipment installation, circuit debugging, motor control, and PID parameter adjustment. Integrating diverse functions for circuit identification, control, and debugging, it overcomes the limitations of single-function equipment. It comprehensively supports various educational scenarios—including daily instruction, course-based practical training, skills assessment, and pre-job training—serving as a vital link between classroom theory and industrial practice.

II. Six Core Advantages Suited for Diverse Training Scenarios
Compared to traditional training equipment, the MR594E stand features a refined design that offers comprehensive upgrades in practicality, safety, flexibility, and pedagogical value. Its six key characteristics perfectly meet the teaching requirements of educational institutions:
1. Interface Compatibility for Multi-Level Training: The equipment's core electrical interfaces are equipped with terminal blocks. This setup accommodates everything from introductory wiring practice for beginners to the assembly and debugging of complex, high-level automation systems. It adapts to teaching tasks across different grade levels and difficulty tiers, significantly enhancing equipment utilization.
2. Comprehensive Configuration with Modular Flexibility: The stand and its accessories come fully equipped and feature a modular design. Components can be freely combined and configured to flexibly execute multidisciplinary and multidimensional training activities, covering the full spectrum of automation courses from foundational to advanced levels. 3. Comprehensive Safety Protection: Ensuring Zero-Risk Teaching. Equipped with a robust safety protection system covering everything from circuit overload and leakage protection to mechanical structural safeguards, the unit effectively mitigates risks—such as equipment failure or electric shock—caused by operational errors, thereby establishing a solid safety barrier for teachers and students during practical training.
4. Portable and Lightweight: Highly Adaptable to Various Venues. Featuring an optimized structure and a compact footprint, the equipment is highly portable. It does not require a dedicated, fixed training area and can flexibly adapt to diverse environments—such as classrooms, multi-functional training halls, and outdoor settings—meeting the needs for mobile and itinerant teaching.
5. Simulated Industrial Scenarios: Aligned with Real-World Job Tasks. The system faithfully replicates the installation, control, and commissioning scenarios of industrial automation equipment. This allows trainees to move beyond purely theoretical or simulated learning, engaging instead in hands-on practice within an environment that closely mirrors actual industrial production; this facilitates rapid alignment with enterprise job standards and shortens the pre-job adaptation period.
6. Systematic Curriculum Support: Standardized Teaching. The equipment comes with a complete, standardized training curriculum covering all dimensions—including safety protocols, fundamental theory, operational techniques, and routine maintenance. This provides teachers with standardized lesson plans while enabling students to master professional skills in a systematic and structured manner.

III. Precise Technical Specifications: Stable Adaptation to Teaching Scenarios
The MR594E training bench is designed with standardized industrial-grade specifications, balancing teaching safety with equipment stability. Its core technical parameters are clearly defined and standardized, making it well-suited for campus training environments:
1. Basic Operational Parameters
Power Supply: Single-phase three-wire AC 220V/50Hz (compatible with standard campus power systems); Operating Temperature: -10°C to +40°C (adaptable to indoor and outdoor teaching environments across all seasons); Ambient Humidity: ≤85% at 25°C (resistant to humid conditions, minimizing circuit faults caused by moisture and ensuring exceptional operational stability).
2. Physical Specifications
Overall Dimensions: 1255mm × 560mm × 1260mm; Total Weight: 100kg. With its moderate size and reasonable footprint, the unit fits well into standard training classroom layouts. It balances structural stability with ease of mobility, ensuring durability and resistance to deformation or damage during long-term educational use.

IV. Comprehensive Component Configuration with Precise Functional Roles
The equipment utilizes a "main unit plus complete accessory set" configuration model. Each component is precisely matched to training requirements—eliminating functional redundancy and configuration gaps—to comprehensively support a wide range of training projects.
1. Core Components of the Main Unit
The main unit comprises three core parts—a fan, an equipment panel, and a power supply unit—that work in synergy with clearly defined roles: The fan precisely generates the experimental operating conditions required for PID tuning, ensuring data accuracy; the equipment panel offers a standardized platform for circuit wiring and component installation, featuring an organized layout and ease of use; and the power supply unit delivers stable, safe power for all operations, serving as the core energy source for the system.
2. Complete Set of Training Accessories
The system includes two motors, allowing for the intuitive demonstration of various electrical control and commissioning experiments, which facilitates student observation and data analysis. It is also equipped with a full range of consumables and tools—such as fuses, multi-colored 4mm safety electrical leads, and a complete set of electrician's tools. With this comprehensive and abundant inventory, no additional purchasing is required; the system supports immediate, routine training and accommodates simultaneous hands-on practice for large groups of students.

V. Core Training Projects Covering Key Professional Skills
Leveraging its robust hardware configuration and functional design, the MR594E training bench supports three core training projects that precisely cover the essential practical skills required in automation majors:
1. Power-On Inspection Training: Guides students in mastering pre-power-up checks, circuit troubleshooting, and safety verification. This fosters standardized electrical operating habits and safety awareness, laying a solid foundation for training.
2. Motor Control Training: Involves hands-on exercises such as motor starting/stopping, operational regulation, and circuit matching, enabling students to master the fundamental control principles and practical operation methods of industrial motors.
3. PID Control Training: Utilizes the fan to simulate operating conditions for advanced training exercises—including PID parameter adjustment, closed-loop control, and parameter optimization—helping students thoroughly understand core automatic control principles and master PID tuning techniques commonly used in industry.

VI. Conclusion
High-Quality Teaching Equipment Tailored for Modern Automation Training
The MR594E Automation Equipment Installation Teaching and Experimental Bench stands out for its practical educational value, industrial simulation capabilities, and safety and stability. It comprehensively meets the teaching requirements of electromechanical automation programs in colleges and universities through its hardware configuration, functional design, and supporting curriculum. It resolves common issues associated with traditional training equipment—such as limited functionality, scenarios detached from real-world industry, and a lack of systematic instruction—while enabling students to engage in a complete, hands-on learning process that spans everything from basic wiring and equipment calibration to advanced control system debugging. This effectively enhances students' practical operational skills and core professional competencies.
For vocational colleges and applied undergraduate institutions, this training bench is an ideal solution for upgrading automation training laboratories, optimizing training curricula, and cultivating high-quality, skilled professionals.
