In modern electrical vocational education and university electrical engineering courses, practical training is the core link to bridge theoretical knowledge and industrial application. For the teaching of magnetic starter control, motor circuit installation, electrical debugging and fault maintenance, a set of industrial-standard, highly operable and safe teaching experimental equipment is essential. Today, we will introduce the MR596E Educational and Laboratory Stand , a professional training equipment tailored for college electrical courses, focusing on electrical installation and adjustment of magnetic starters and hardware component operation training.

1. Product Overview: Professional Customization for Electrical Teaching Scenarios
1.1 Product Description
The MR596E educational and laboratory stand is independently developed and manufactured targeting the practical teaching needs of college electrical engineering, automation, mechatronics and other majors. It abandons the simplified and non-industrial design of traditional teaching experimental equipment, and fully adopts industrial-grade core configuration , integrating industrial circuit breakers, contactors, precision measuring instruments and dual asynchronous motor systems.
The equipment adopts a mature open modular design, which breaks the closed experimental mode of traditional teaching equipment. All circuit construction, component wiring and equipment debugging links need to be completed independently by students. It covers core practical training projects such as main circuit wiring, star-delta step-down starting control, motor start-stop adjustment and circuit fault troubleshooting. Through hands-on operation, it systematically cultivates students' comprehensive abilities of electrical system design, on-site installation, parameter debugging and fault diagnosis.
In terms of safety and compatibility, the equipment supports AC380V/220V dual power input, and strictly complies with the national GB/T 5226.1 electrical safety standard . It has complete electrical protection mechanisms, effectively avoiding electric leakage, short circuit and overload risks in the experimental process, and ensuring safe and standardized teaching and training.
1.2 Core Product Features
Different from ordinary teaching experimental platforms, MR596E has obvious advantages in industrial simulation, practicality and teaching comprehensiveness, with four core highlights:
1. Real restoration of industrial application scenarios
The equipment fully copies the actual electrical control circuit and magnetic starter working scenario in industrial production. The component layout, circuit logic and operation mode are consistent with industrial field standards, enabling students to get familiar with industrial electrical operation specifications in advance and realize zero-distance docking with post-industrial work scenarios.


2. Full industrial brand core components
All key electrical components such as circuit breakers, AC contactors and thermal relays are selected from formal industrial brands, with stable performance and long service life. Compared with teaching-specific simplified components, industrial components have more accurate parameter response and more real working state, which ensures the authenticity and accuracy of experimental training results.
3. Fully exposed terminal design, focusing on hands-on training
All component wiring terminals of the equipment are open and exposed, with no pre-embedded hidden circuits. Students need to match supporting wires according to experimental principles, independently complete circuit layout, wiring, connection and calibration. This design effectively exercises students' circuit analysis ability and hands-on wiring skills, avoiding the mechanical operation of plug-and-play of traditional experimental equipment.
4. Rich and expandable experimental projects
The platform supports a variety of core electrical control experiments, including motor inching control, forward and reverse rotation control, star-delta step-down starting, relay overload protection, circuit fault detection and other practical training projects. It covers the key knowledge points of magnetic starter installation, debugging and hardware component operation, meeting the teaching needs of basic experiments, skill training and comprehensive practical training.
2. Precise Technical Specifications, Standard Industrial Configuration
MR596E adopts standardized industrial parameter design, with stable and reliable overall performance, and clear and standardized equipment parameters, which is convenient for school teaching management and experimental data recording.
2.1 Basic Electrical Parameters
Working power supply: Three-phase five-wire AC 380V, 50Hz industrial standard power supply, compatible with conventional campus laboratory power supply environment.
2.2 Equipment Appearance Parameters
Overall dimensions: 1320mm×950mm×1710mm, the vertical cabinet structure is reasonable, which is convenient for students to stand and operate, and adapts to the standard laboratory space layout.
Equipment weight: 169kg, stable overall structure, not easy to shake during operation, ensuring the stability of experimental process.

3. Complete Equipment Structure, Comprehensive Configuration
MR596E is composed of multiple functional modules such as main frame, experimental panel, power box and professional supporting accessories. Each module has clear division of labor and complete functions, covering all links from power supply output, circuit control to motor operation.
3.1 Main Equipment Components

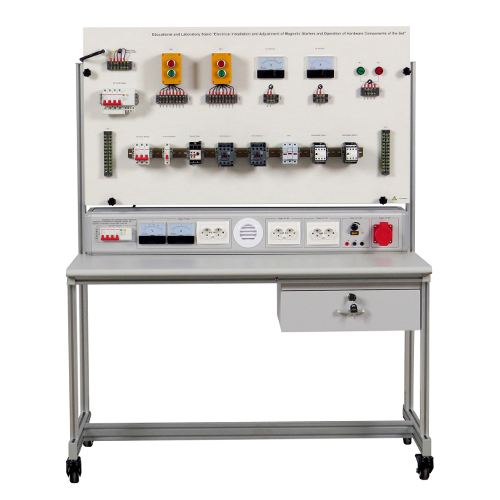

The whole set of equipment adopts an integrated assembly structure, including 1 equipment panel (core experimental operation area), 1 equipment power box (power supply and protection module), 1 built-in drawer (tool and accessory storage) and 1 high-strength equipment rack (support and protection structure). The structure is compact and hierarchical, integrating operation, power supply and storage functions.
3.2 Functional Configuration of Equipment Panel
As the core experimental operation area, the panel is equipped with complete electrical control components to meet all magnetic starter and motor control experiments:
It is equipped with 4P/3P/1P multi-specification circuit breakers to realize multi-level circuit protection; 2 sets of red and green double button boxes for start-stop signal control; matching AC voltmeter and ammeter to monitor experimental voltage and current parameters in real time; red and green indicator lights to display circuit working status. In addition, it is equipped with industrial thermal relays, dual AC contactors, fuse holders and AC relays, which constitute a complete magnetic starter control circuit system, fully meeting the needs of circuit installation, debugging and fault simulation.
3.3 Power Box Module Configuration
The independent power box module ensures safe and stable power supply output, with rich power supply specifications and strong compatibility. It is equipped with 4P circuit breaker for total power supply protection, and built-in high-precision AC voltmeter (AC250V) and ammeter (AC5A) to monitor power supply status in real time. It supports multiple power output modes such as AC220V, AC36V, AC12V and adjustable DC2-30V, which can meet the power supply needs of different experimental components. The industrial waterproof AC380V plug is matched with the ventilation and heat dissipation holes to ensure long-term stable operation of the equipment and improve the safety of experimental power supply.
3.4 Complete Supporting Accessories
The equipment is equipped with a full set of professional experimental accessories without additional purchase, including 1mm² black BVR wiring wires, multi-color 4mm safety experimental cables of different lengths, supporting screwdriver sets, 5A fuse cores and 3A fuse tubes, and dual asynchronous three-phase motors. The complete accessory configuration ensures the smooth development of all experimental projects and meets the needs of daily teaching, repeated training and skill assessment.

4. Core Teaching Experimental Projects
Centering on the teaching goal of "magnetic starter electrical installation and adjustment + hardware component operation", MR596E covers two core and must-learn experimental projects for electrical majors, which are highly matched with college curriculum standards:
4.1 Three-phase Asynchronous Motor Inching Control Experiment
Students can complete the wiring and debugging of the motor inching control circuit through the equipment, master the working principle of the magnetic starter in the inching control scenario, understand the control logic of contactor pull-in and release, and learn the circuit setting method of manual jog operation, which lays a foundation for mastering the basic control mode of the motor.
4.2 Motor Forward and Reverse Rotation Control Experiment
Based on the dual contactor and relay protection module of the equipment, students can build a motor forward and reverse rotation control circuit independently, master the phase sequence switching principle of three-phase power supply, the interlocking protection mechanism of forward and reverse contactors, and the installation and debugging skills of the magnetic starter forward and reverse control system. This project is a key practical content of industrial electrical control, which can effectively improve students' comprehensive practical ability.

5. Teaching Value Summary
Different from traditional theoretical teaching and single-function experimental equipment, MR596E educational and laboratory stand takes industrial standard + practical teaching orientation as the core, realizes the integration of principle verification, skill training and industrial scenario simulation. The open modular design, industrial-grade component configuration and rich experimental projects can help colleges and universities build a professional electrical control practical training classroom.
For students, the equipment changes the passive learning mode of listening to lectures and watching demonstrations, and realizes full-process independent operation from circuit analysis, wiring installation, parameter debugging to fault troubleshooting, which effectively improves professional practical skills and engineering literacy, and cultivates high-quality applied electrical talents for the industry.
