Electrical safety is the core foundation of low-voltage power system operation and electrical vocational training. Protective grounding, protective zeroing and fault disconnection devices serve as three key barriers to prevent electric shock accidents, eliminate circuit overload, short circuit and leakage risks. For electrical teaching, training and engineering practice, mastering the installation, working principle and operation logic of these protective elements is essential. Today, we will take the MR600E protective grounding, zeroing and disconnection device installation training system as the core, conduct a comprehensive analysis of its product principles, structural features, technical parameters and practical training functions, helping learners systematically grasp low-voltage electrical protection technology.

1. Product Overview & Working Principles

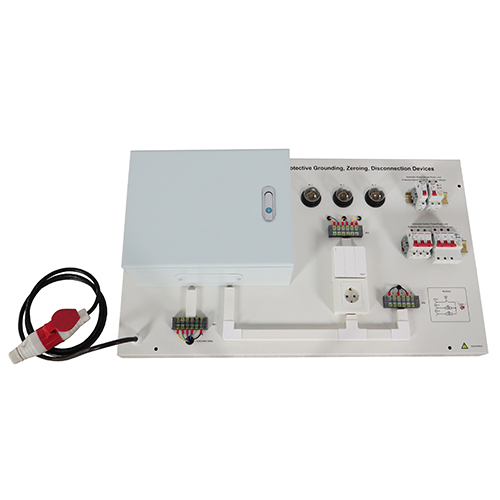

The MR600E training device is a professional teaching and experimental platform tailored for low-voltage electrical safety protection training. It focuses on the installation, debugging and performance verification of protective grounding, zeroing and various disconnection protection devices, covering the full-process principle demonstration and practical operation of common electrical safety protection technologies in industrial and civil power distribution systems.
1.1 Core Working Principles of Protection Technology
The equipment integrates three core protection mechanisms: protective grounding, protective zeroing and intelligent fault disconnection, which cooperate with each other to build a complete electrical safety protection system, with clear and rigorous working logic.
Protective Grounding Principle: In normal operation, electrical equipment metal casings and frames are non-energized. When circuit faults occur and cause the casing to be accidentally energized, the grounding device can reliably connect the metal conductor to the earth, forming a low-impedance fault current discharge path. This design greatly reduces the contact voltage between the equipment casing and the ground, fundamentally avoiding electric shock accidents caused by human contact with live casings. Meanwhile, the fault current transmitted to the ground can trigger the automatic action of terminal protection devices such as circuit breakers and fuses to cut off the power supply quickly.
Protective Zeroing Principle: Different from grounding protection, zeroing protection guides fault current through a metal closed loop rather than earth discharge. When equipment fails and is energized, the fault current flows back to the power supply neutral point through the equipment casing, PE/PEN zero line, forming a powerful metal short-circuit loop. The instantaneous huge short-circuit current can force the power protection device to trip and break the power supply in milliseconds, realizing rapid fault isolation and improving the timeliness and stability of protection.
Fault Disconnection Device Principle: The device integrates dual detection and execution components of thermal overload and electromagnetic short circuit, equipped with a linkage operating mechanism. For overload faults, the thermal bimetallic strip generates thermal deformation under the continuous action of overload current to trigger mechanical tripping; for short-circuit faults, the instantaneous strong electromagnetic force drives the trip mechanism to disconnect contacts rapidly. In addition, the matching leakage protection module adopts zero-sequence current transformer to detect the residual current difference between live wire and neutral wire, and triggers tripping through electronic circuit or electromagnetic mechanism to realize leakage protection. All disconnection mechanisms support manual reset and repeated use, meeting the needs of repeated training and debugging.
1.2 Outstanding Product Features
As a professional electrical safety training device, MR600E has structural design, functional configuration and safety performance optimized for teaching scenarios, with prominent practical advantages:
First, it adopts a high-strength aluminum profile frame structure. Each functional unit is modularly designed with flexible assembly and matching, which is not only convenient for teachers to carry out combined teaching, but also effectively avoids equipment damage caused by frequent experimental operations, with strong durability.
Second, the experimental circuit and functional device configuration are complete. It covers single-phase and three-phase power distribution circuits, various protection switches and load modules, supports free combined debugging, and can complete multiple types of electrical protection training projects to meet diversified teaching and practical assessment needs.
Third, the whole workbench is equipped with a perfect safety protection system. It effectively isolates experimental faults, avoids electric shock, short circuit impact and other risks in the training process, and guarantees the personal safety of trainers and the stability of experimental equipment.
Fourth, the protection principle is universal and applicable. It is compatible with various low-voltage power supply systems, can efficiently reduce equipment contact voltage, and has stable and reliable protection effect, which is highly consistent with actual engineering application scenarios.
Fifth, the fault removal speed is fast. On the premise of meeting loop impedance standards, the protection device can complete instantaneous tripping and power cut, with high safety factor and strong fault tolerance.
Sixth, the functional integration is high. It integrates overload, short circuit and leakage protection functions, supports manual opening and closing operation, has clear working status indication, realizes selective protection accurately, and can be reused for a long time, with simple operation and low teaching cost.

2. Professional Technical Specifications
MR600E adopts standard three-phase five-wire low-voltage power supply design, which is fully in line with industrial and civil power distribution standards, with stable parameters and wide environmental adaptability.
2.1 Core Technical Parameters
Nominal power supply: Three-phase five-wire AC380V, 50Hz industrial standard power frequency;
Applicable working environment: Ambient temperature range -10℃～+40℃, relative humidity ≤85% (25℃ constant temperature environment), suitable for indoor teaching laboratories and professional electrical training rooms.
2.2 Overall Size & Weight
External dimension: 950mm×75mm×550mm, compact and regular structure, occupying small space, convenient for laboratory layout and mobile placement;
Equipment weight: Less than 30kg, lightweight design, easy to carry and assemble, suitable for daily teaching demonstration and student independent operation training.

3. Equipment Composition & Functional Description
MR600E is composed of a complete main body module and supporting accessories, with clear division of each component and independent and coordinated functions, covering all links of power distribution, detection, protection and operation.
3.1 Main Body Components & Core Functions
The main body of the training device includes 11 core functional components, which jointly build a complete experimental training circuit:
1. Distribution box (1 set): As the core power distribution carrier of the equipment, it integrates circuit wiring and power supply management to provide stable power support for each experimental module.
2. Lamp load (3 sets): Analog actual electrical load, used to verify the operating state of protection devices under no-load and load conditions, and simulate daily electrical equipment power consumption scenarios.
3. Single-phase circuit breaker (1 set): Realize single-phase circuit on-off control, overload and short-circuit protection, which is the basic protection component of single-phase power distribution circuit.
4. Single-phase leakage protector (1 set): Specialized in monitoring single-phase circuit residual current, automatically trip to cut off power in case of leakage fault to prevent single-phase equipment electric shock accidents.
5. Three-phase circuit breaker (1 set): Undertake three-phase main circuit on-off control and fault protection, adapt to three-phase power equipment experimental scenarios.
6. Three-phase leakage protector (1 set): Monitor three-phase circuit current balance and residual current, realize three-phase circuit leakage safety protection.
7. Three-position switch (1 set): Support multi-position circuit switching, realize different circuit connection modes and fault state simulation, enrich experimental training types.
8. Busbar (1 set): Realize circuit current transmission and shunt, ensure stable power supply of each functional module, and standardize circuit wiring.
9. European socket (1 set): Provide standard power interface for external experimental accessories and auxiliary equipment.
10. Wire trough (1 set): Standardize internal circuit wiring, avoid wire disorder and short circuit risks, and improve equipment safety and maintainability.
11. Test button (1 set): Manually trigger fault simulation, detect the sensitivity and reliability of each protection device, and facilitate daily equipment debugging and experimental verification.
3.2 Supporting Accessories
The equipment is equipped with a professional screwdriver (1 set), which meets the daily wiring, disassembly, debugging and maintenance needs of the training process, with complete supporting tools and no additional configuration required.

4. Core Teaching & Experimental Training Projects
Based on the functional configuration of MR600E, the equipment can carry out targeted electrical safety protection training, covering basic component detection and typical fault protection experiments, which is suitable for vocational electrical teaching, skill assessment and enterprise employee training:
4.1 Panel Component Function Test
This project is the basic training content, guiding learners to be familiar with the structural composition and working characteristics of each component on the equipment panel. Through manual operation and power-on detection, master the on-off logic, status indication, normal working parameters and fault response characteristics of circuit breakers, leakage protectors, switches and other components, lay a foundation for subsequent fault debugging and installation training.
4.2 Single-phase Protective Shutdown Device Test
Focus on single-phase power distribution system scenarios, simulate overload, short circuit, leakage and other common faults of single-phase circuits. Learners can complete the installation and wiring of protective grounding and zeroing devices, verify the tripping and power-off performance of single-phase protection devices under different fault states, master the fault judgment methods and protection mechanism principles of single-phase electrical systems, and solve practical safety problems in single-phase electrical equipment operation.

5. Application Value & Summary
The MR600E protective grounding, zeroing and disconnection device installation training system perfectly integrates principle demonstration, installation operation, fault simulation and performance verification. It breaks the limitation of traditional theoretical teaching, realizes the integration of theory and practice, and enables learners to intuitively understand the working mechanism of electrical safety protection devices.
With its modular structure, complete functions, high safety and reusable characteristics, the equipment is widely applicable to electrical automation, mechatronics, electrical operation and other majors in vocational colleges, as well as safety skill training for electrician practitioners. It can effectively help trainees standardize installation specifications, master fault disposal methods, improve electrical safety awareness and practical operation skills, and provide reliable equipment support for cultivating professional and standardized electrical operation talents.
