Introduction: The Spark of Modern Technical Education
In the world of electrical engineering education, theory is essential, but hands-on application is the true test of understanding. Working with high voltages—whether 230V AC, 240V DC, or 400V three-phase power—requires more than just a textbook; it requires a safe, controlled, and robust environment.

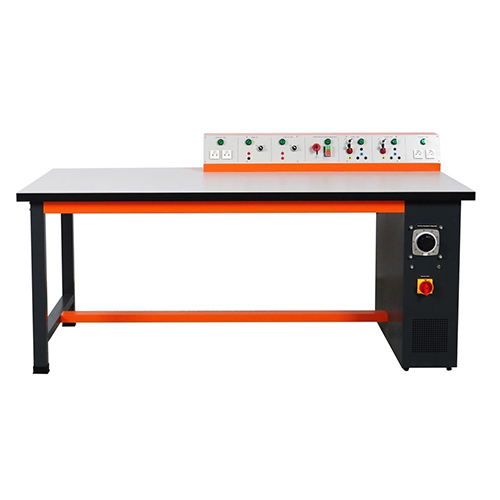

Enter the MR563E Versatile Station for Electrical Manipulations. This isn’t just a workbench; it is a fully equipped, standards-compliant electrical operating station designed to turn students into competent, safety-conscious technicians. Whether you are training the next generation of industrial electricians or teaching advanced motor control, the MR563E provides the muscle and the safety net required.

I.Product Overview: Safety Meets Functionality
At first glance, the MR563E impresses with its industrial build. With dimensions of 2000mm × 750mm × 1020mm and a substantial weight of 500kg, this station is built to last in a busy classroom environment.
However, the real innovation lies in the safety features. Unlike basic training boards, the MR563E features a key-operated "Emergency Stop" button for independent active safety protection. Additionally, the workbench includes an on/off button with a visual indicator light and a "memory" function—ensuring that the machine remembers its state in case of a power interruption, preventing unexpected startups.
Technical Specifications (At a Glance)
Input Power: Three-phase five-wire ~380V ± 10% 50Hz (Standard industrial supply)
Device Capacity: <2kVA (Energy efficient for lab settings)
Operating Temperature: -10℃ to +40℃
Weight: 500 kg
Dimensions: 2000mm × 750mm × 1020mm

II.Unpacking the Power: The Modular Heart
What makes the MR563E truly "versatile" is its modular power supply unit. Students don’t just learn one voltage; they learn the spectrum of industrial electricity. Here is a breakdown of the core modules:
1. The Power Supply Arsenal
The station includes seven distinct power output modules, allowing for a wide range of experiments:
230V AC Socket Unit: Standard household/industrial outlet for adapters.
240V DC Supply: Perfect for learning about DC motor control and industrial DC logic.
24V AC Supply: The standard control voltage for industrial relays and PLCs (Safe for beginners).
400V Three-Phase Supply: For true industrial motor starters and high-power circuits.
0-430V AC Variable Transformer: The crown jewel of the unit. This allows students to safely ramp up voltage from 0 to 430V AC to observe the effects on different loads.
2. The Accessory Kit
You cannot manipulate electricity without the right tools. The MR563E comes complete with a full set of 4mm safety electrical cables (1m length, double-ended) in standard color coding:
Black, Blue, Yellow, Red, Green, and Dual-color (Earth/Ground).
Quantity: 5 of each color.
This color-coding reinforces the discipline of standardized wiring (Neutral: Blue, Earth: Green/Yellow, Phases: Red/Black).

III.Putting it to the Test: The Power-On Sequence
A great training station must verify its health before every use. The MR563E includes a detailed test guide. Here is a simulation of a standard student pre-check:
230V AC Test: Plug in a device. The socket is active immediately (No separate switch - good for understanding "always on" circuits).
24V AC Test: Flip the dedicated switch. The unit outputs 24V. (Non-adjustable, stable reference).
240V DC Test: Flip the dedicated switch. Students can measure the rectified DC output.
400V AC Test: Engage the safety switch to activate the heavy-duty three-phase output.
0-430V AC Test: The advanced lesson. Turn the dial from 0 up to 430V while monitoring a voltmeter. This adjustable feature allows for soft-start experiments and transformer loading tests.

IV.Educational Impact: Why Your Lab Needs This
The MR563E is not just a box of components; it is a pedagogical tool.
Skill Development: It cultivates practical manipulation skills and the ability to analyze and solve real-world electrical problems.
Complete Protection: With fully enclosed terminals and an emergency stop on the workbench, students can make mistakes safely without endangering themselves or the equipment.
Professional Foundation: Working on a 500kg industrial station prepares students for the feel of a real MCC (Motor Control Center) or distribution panel, bridging the gap between the classroom and the factory floor.

V.Conclusion
The MR563E Versatile Station for Electrical Manipulations is the ultimate partner for vocational trai
