Mastering Industrial Maintenance: A Deep Dive into the MR567E
Electrical Training Simulator Published by: Technical Training Insights

In vocational education, a significant gap often exists between textbook theory and practical industrial experience. For teachers and students majoring in electrical maintenance, a safe, reliable, and realistic training platform is not a luxury, but a necessity.
The MR567E Electrical Maintenance Skills Training Simulation System, introduced today, was created precisely for this purpose. Designed for vocational schools, technical schools, and training institutions, this system provides students with a practical platform for electrical measurement, debugging, and troubleshooting by simulating a real industrial electrical control environment.
Let's comprehensively analyze the advantages of this system, from its hardware structure and technical parameters to its teaching experiments.
Product Positioning: A Bridge from Classroom to Workshop



I.The core positioning of the MR567E is "simulation teaching.
" Unlike simple demonstration boards on the market, it uses industrial-grade standard components to simulate a real maintenance environment. Students are not faced with abstract symbols, but with real relays, contactors, and instruments.

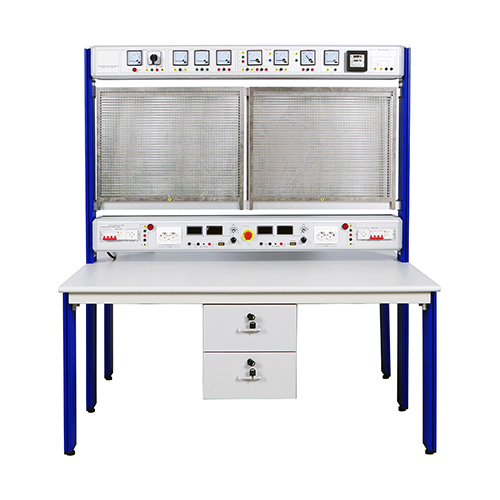

In its structural design, the system prioritizes ease of teaching:
Upper and lower power supply boxes with a middle partition: providing clear voltage zoning and physical safety isolation.
Bottom storage cabinet: offering ample storage space for connecting cables, tools, and accessories.
This compact structure (1600 mm wide, 1800 mm high, and 1370 mm deep) meets various electrical experiment needs without excessively occupying valuable training room space.

II.Key Highlights: Safe, Precise, Modular
1. Authentic Industrial Configuration: The system uses industry-standard electrical components. When students perform voltage measurements or troubleshoot contact faults, they experience the same operational feel and electrical response as in their future jobs, effectively enhancing their hands-on skills.
2. Multifunctional Measuring Instrument Cluster: The system is equipped with a variety of mechanical and digital instruments capable of measuring comprehensive electrical parameters:
Voltage, Current (three-phase and single-phase)
Active Power, Power Factor
Power Frequency and Electricity Metering
This means students can complete all experiments from basic electrical engineering to power quality analysis on a single device. 3. Comprehensive Safety Protection: Safety is paramount in practical training. The MR567E is equipped with an emergency stop button and a grounding terminal. Simultaneously, the mid-level enclosure structure creates a physical barrier between the high-voltage area (AC 380V) and the operator, ensuring safety during hands-on operation.
4. Flexible DC Power Supply: The system incorporates a 0~30V adjustable DC output unit. This design greatly expands the training scope, allowing students to conduct transistor circuit, sensor debugging, or DC motor control experiments without the need for additional equipment purchases.
5. Modular Structure and Storage: The design, featuring upper and lower power supply boxes plus a mid-level enclosure, facilitates maintenance and future expansion. The bottom storage cabinet also ensures organized access to cables and tools.
Technical Parameter Overview: In terms of electrical parameters, this equipment uses a three-phase five-wire AC 380V 50Hz power supply. The total weight of the entire unit is kept under 200 kg, and the connection board measures 640 mm wide and 730 mm high, providing ample wiring space for students.

III.Hardware Disassembly: What Does the System Component?
The MR567E mainly consists of three parts: the instrument box, the power supply box, and accessories.
First, the instrument box. Each system contains two instrument boxes, integrating various high-precision measuring devices:
Two three-phase AC voltmeters
Six AC ammeters
Two three-phase wattmeters and two single-phase wattmeters
Two power factor meters, two frequency meters, and two electricity meters
This comprehensive instrument configuration allows students to monitor multiple parameters in the circuit simultaneously without frequent range switching.
Second, the power supply box. The system contains four power supply boxes, which are the core of the equipment's power:
Four 4P circuit breakers for main circuit protection
Modular three-phase sockets and AC 380V output terminals.
The system includes a power indicator light, a European-style socket, and the previously mentioned 0-30V adjustable DC output unit.
The crucial emergency stop switch is also conveniently located on this panel.
Finally, there's a comprehensive accessory package. To support various wiring experiments, the system provides numerous 4mm electrical safety cables in two-color, yellow, black, red, and green combinations, totaling over 30 cables. Additionally, it includes 80 plastic mounting clips, 80 flat-head self-tapping screws, and an industrial waterproof plug to ensure safe and secure connection to the lab's power grid.

IV.Teaching Experiment List: From Theory to Practice
The quality of a system ultimately depends on the experiments it can perform. The MR567E comes with a complete training manual, and the following are the seven most essential projects:
1. Three-Phase Asynchronous Motor Line Voltage Measurement Experiment
This is the most basic introductory experiment. Students learn how to safely connect a voltmeter across U-V, V-W, and W-U to verify the relationship between line voltage and phase voltage (confirming a reading of approximately 400V in a 380V system).
2. Three-Phase Asynchronous Motor Star Connection Current Measurement Experiment
Students connect the motor in a star configuration and measure the line current using an ammeter connected in series. Through this experiment, students can intuitively understand the characteristic of lower current during star connection startup.
3. Star Connection Motor Power Measurement Experiment
Using voltage, current, and a wattmeter, students calculate the actual power consumption of the motor in a star connection, understanding the difference between active power and apparent power.
4. Single Wattmeter Measurement of Incandescent Lamp Power Experiment
This is a classic DC/single-phase AC experiment. By measuring the voltage and current of a purely resistive load (incandescent lamp), students verify the power calculation formula and master the reading method of an analog wattmeter.
5. Three-Phase Motor Power Factor Measurement Experiment
This is an advanced skill in industrial maintenance. Students connect a power factor meter to the circuit, observe the current lag caused by inductive loads, and discuss why reactive power compensation is necessary.
6. Three-Phase Power Supply Frequency Measurement Experiment
Although the theoretical grid frequency is 50Hz, this experiment teaches students to use a frequency meter to verify power quality and understand the direct impact of frequency fluctuations on motor speed. 7. Single-Phase Electricity Meter Wiring and Measurement Experiment in a Three-Phase Circuit
This is a highly practical experiment. Students learn how to correctly connect a single-phase electricity meter to measure the electrical energy consumed by a single phase load in a three-phase circuit, which is fundamental to factory energy metering.

V.Conclusion
The MR567E Electrical Maintenance Skills Training Simulation Teaching System is more than just a teaching device; it's a miniature industrial power distribution center.
For students, it provides opportunities to make mistakes, troubleshoot, and learn in a safe environment, building confidence in real electrical cabinets. For teachers, it's a well-structured, comprehensive, and reliable teaching platform capable of demonstrating everything from the simplest voltage measurements to the most complex power factor correction.
If your organization is looking to upgrade its electrical maintenance training lab, the MR567E, with its robust industrial construction, accurate measurement capabilities, and comprehensive experimental list, is undoubtedly a top-tier option worthy of serious consideration.
