I. Product Core Overview: Multifunctional Integrated Starting Current Limiting Device
The MR580E starting resistor is a dedicated electrical device designed for low-voltage motor starting and current limiting control. Its core principle is to adjust the circuit resistance value through a combination of adjustable and fixed resistors to suppress the instantaneous inrush current during motor starting. Combined with a built-in three-phase rectifier module, it achieves smooth starting of various types of motors and electrical experimental functions, balancing practicality and experimental professionalism.
The equipment features multi-specification resistor modules and an integrated rectifier system, forming a gradient, wide-range resistance adjustment system to adapt to motor starting scenarios with different power and voltage specifications. The core resistor configuration includes a 0-1kΩ continuously adjustable high-power resistor, a 1kΩ extended-range fixed resistor, and a 2.2kΩ low-power dedicated resistor, covering various experimental needs from high to low power. Simultaneously, the equipment employs a graded current-limiting design, precisely matching the maximum carrying current according to the resistance range to fundamentally avoid safety issues such as overload, overheating, and short circuits.
Precise current parameter matching: The maximum current can reach 6A in the 0-50Ω low-resistance range, suitable for high-power starting scenarios; the maximum current is 2A in the 51-200Ω medium-resistance range, meeting the starting requirements of conventional motors; the maximum current is 0.6A in the 201Ω-1kΩ high-resistance range, suitable for low-power precision experiments. This graded design ensures more stable equipment operation and more accurate experimental data. The core adjustable resistor has a rated power of 500W, and the extended fixed resistor has a power of 180W. This high-power hardware configuration ensures the equipment can operate continuously for extended periods without failure.

II. Core Product Advantages: Three Highlights for Teaching and Experimental Scenarios
1. Integrated and Compact Design, Adapting to Multiple Starting Needs

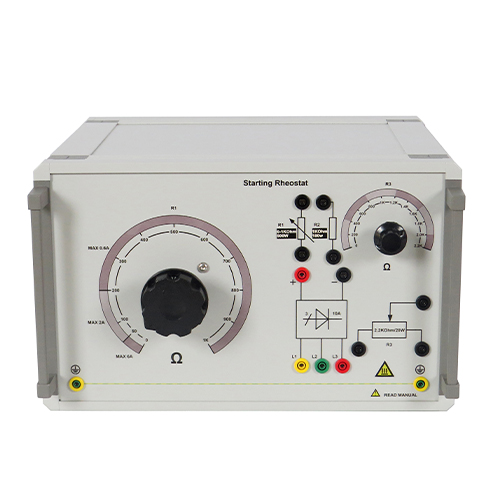

The MR580E starting rheostat adopts a compact chassis structure, reducing equipment size and weight while integrating a complete set of core components such as adjustable resistors, fixed resistors, and a three-phase rectifier bridge. It boasts comprehensive hardware configuration and integrated functions. Compared to traditional separate starting devices, this device requires no additional auxiliary modules and can directly adapt to a wide range of motor starting conditions. Whether it's basic starting tests for industrial motors or teaching experiments in university electrical engineering programs, it can quickly adapt and is highly versatile.
2. Independent Cooling System, Ensuring Long-Term Safe Operation
High-power resistors easily generate a large amount of heat during operation. High temperature is a major cause of damage and performance degradation in electrical experimental equipment. This device is equipped with a professional independent cooling system, which can quickly dissipate the heat generated by the resistor, effectively reducing the body temperature and avoiding problems such as resistance drift, component aging, and circuit failure caused by high temperatures. Continuous and stable heat dissipation allows the device to support long-term continuous experiments and repeated start-stop tests, significantly improving equipment lifespan and experimental safety. 3. Integrated Three-Phase Rectifier Bridge, Compatible with Multiple Voltage Types of Motors
The equipment incorporates a high-performance three-phase rectifier bridge module, enabling wide-range voltage adaptation and overcoming the voltage adaptation limitations of traditional starting rheostats. It can meet the reduced-voltage starting requirements of conventional AC motors and also achieve smooth starting of DC motors through rectification and conversion. Compatible with motors of different voltage specifications and power supply types, this multi-functional unit significantly reduces the procurement cost of experimental equipment and the cost of space occupancy.

III. Precise Technical Parameters, Strictly Adapting to Experimental Standards
As a dedicated teaching and experimental device, the MR580E starting rheostat boasts precise parameters and stable operation. All indicators conform to electrical training equipment standards. Core technical parameters are as follows:
- Rated Voltage: Single-phase three-wire AC230V, 50Hz, suitable for conventional domestic experimental power supply environments.
- Operating Environment: Suitable for ambient temperatures of -10℃ to +40℃, relative humidity <85% at 25℃, adaptable to most conventional working conditions in laboratories and training workshops, with strong weather resistance.
- Equipment Dimensions: 385mm × 340mm × 240mm, compact size, easy to place, move, and store, compatible with standard laboratory workbench dimensions.
- Equipment Weight: Total weight <15kg, lightweight design, easy to move, suitable for mobile teaching and multi-site rotating experiments.

IV. Equipment Structure and Accessories: Complete set, ready to use out of the box.
1. Core Components
The equipment's core structure is streamlined and professional, with each component having a clear function and working collaboratively to ensure stable output of core performance:
- R1 Adjustable Resistor: Core voltage regulation and current limiting component, enabling continuous resistance adjustment from 0-1kΩ.
- R2 Fixed Resistor: 1kΩ fixed resistor, used to expand the equipment's resistance adjustment range.
- R3 Adjustable Resistor: Adapted for low-power precision experiments, refining resistance adjustment accuracy.
- Three-Phase Rectifier Bridge: Core conversion module, realizing three-phase AC rectification and supporting DC motor starting experiments.
2. Complete Set of Standard Accessories
The equipment comes with a full set of professional wiring accessories, eliminating the need for additional purchases. Wiring and debugging can be completed immediately upon opening the box, meeting various experimental wiring needs: Includes 14 safety connection cables in multiple specifications (4mm red, yellow, dual-color, black, green), 2 dedicated power cords, and 5 U-shaped plugs. The accessories are standardized, safe, and compliant with teaching experimental wiring standards, effectively avoiding experimental malfunctions caused by improper wiring.

V. Core Experimental Application Scenarios, Aligned with Core Electrical Engineering Courses
The MR580E starting rheostat is specifically designed for practical training courses in electrical automation and mechatronics majors in universities. It supports two classic teaching experiments, covering core knowledge points of basic electrical principles and motor control:
1. Three-Phase Rectifier Bridge Principle Application Experiment
Utilizing the device's built-in high-performance three-phase rectifier module, it can conduct teaching experiments on the principle of three-phase AC rectification, visually demonstrating the complete AC-to-DC conversion process. This helps students deeply understand the working mechanism of rectifier circuits and voltage conversion laws, solidifying their fundamental knowledge of power electronics technology.
2. DC Motor Starting Control Experiment
As a core training function, the device can be used as a dedicated starting device for DC motors. By adjusting the resistance value with gradients, it precisely controls the motor's starting current and starting voltage, achieving smooth soft starting of the DC motor. During the experiment, the impact of resistance changes on the motor's starting speed and starting current can be visually observed, helping students master the core principles and practical skills of motor current-limiting starting and soft starting.

VI. Conclusion
The MR580E starting rheostat boasts core advantages such as multi-functional integration, safety and stability, wide adaptability, and strong practicality, overcoming the shortcomings of traditional starting devices that suffer from single functionality, poor heat dissipation, and limited applicability. Its compact design, precise graded current limiting parameters, comprehensive cooling system, and complete set of accessories perfectly match the core needs of electrical teaching and training in universities and motor performance testing in laboratories. It ensures both the safety and stability of the experimental process and accurately presents the principles of electrical experiments, making it a high-performance, cost-effective choice for electrical teaching and motor testing.
