MR-H13 Apparatus for studying free and forced vortex flows educational equipment didactic equipment fluid mechanics lab equipment Textbook: Teaching Instruments for Free and Forced Eddy Current Research
Zoom in picture
description

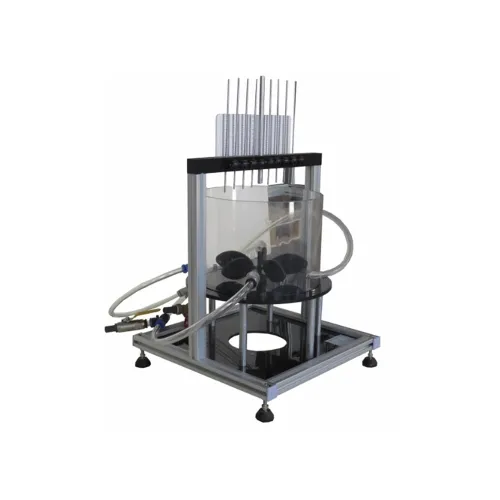

Teaching device to visualize and study vortex phenomena or free and forced vortex phenomena. The device comes with a drive motor and related instruments,
Included is a complete hands-on instruction manual (TP).
Educational property
The teaching equipment can perform the following practical exercises:
-Determine the contour of the forced vortex surface
-Determine the surface contour of the free vortex
-Determine the total pressure in the forced vortex
-Comparison of results with theoretical predictions
Included is a complete hands-on instruction manual (TP).
Tender specifications
Study of free tours and power installations -The bench should allow study of free and forced vortex.
-Swirls are clearly visible from all angles
-The table should allow rapid conversion of free vortex to forced vortex and allow quantitative analysis of vortex
The bench must allow the following teaching operations:
-Determine the contour of the forced vortex surface
-Determine the surface contour of the free vortex
-Determine the total pressure in the forced vortex
-Comparison of results with theoretical predictions Required technical specifications:
-1 cylindrical plexiglass container (380 mm diameter, 180 mm height)
Perforation diameter of -1 cylindrical plexiglass container. 286 mm; height 180 mm)
-1 low voltage motor
-1 Pitot tube
-1 pressure tube
-1 depth gauge with graduated crossbar system in mm
-1 supply lines
-1 evacuation tube
-Leveling screws
-1 independent control box with gearbox
-Water tank size: about 650 x 400 x 600 mm
-Console size: 250mm x 270mm x 110mm
-User and practical manual
