MR061A Front Wheel Drive Manual Transmission Model Automotive Training Equipment Technical Training Equipment
Overview
Dimension: 1000×650×1600（L×W×H）
Operating Environment: Temperature-5℃～40℃, Humidity≤80%
Transmission Type: Santana Working voltage: 220V equipped with leakage protector
Frequency: 50/60HZ Power: 200W
The rack use square tube and iron plate of international standardized profile to conduct seamless welding, its surface is dealt with high temperature spraying plastics after polishing, which is anti-corrosion, anti-aging and fastness, it is installed with universal self-locking castor on the bottom of the rack, which is convenience to teach movably.

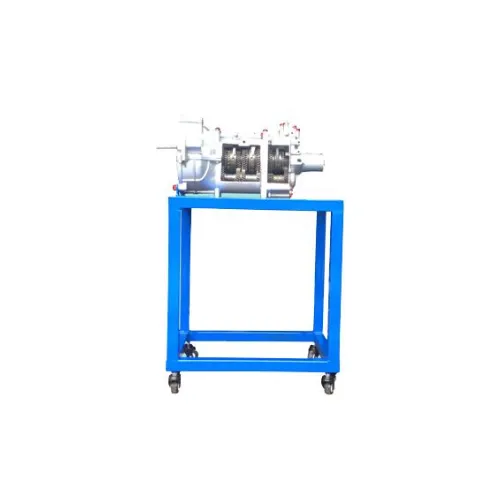

Using full dissection of Santana transmission, you can observe all the gears that are painted with different colors for distinguishing.
Using gear motor as dynamical system and using it to drive the primary shaft of transmission running slowly, it can turn to different gears, you can observe transmission between each internal gear through cut away structure. It is equipped with a matched operation and maintenance manual.
Supply English user manual.
