I.Product Overview

1.1 Overview

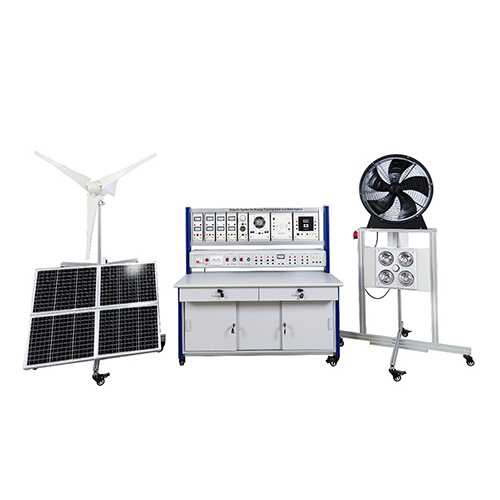

The MR1020R Solar and Wind Hybrid Energy Training Teaching System is an advanced teaching tool designed for education and training. It aims to help students deeply understand the principles and processes of wind power generation and solar power generation through intuitive simulation demonstrations. The device can accurately simulate real-world wind power generation systems and solar power generation systems, allowing students to learn and experiment in a safe and controlled environment.
In the MR1020R Solar and Wind Hybrid Energy Training Teaching System, the wind turbine is partially driven by a blower to simulate the real wind power generation process. Students can observe the effect of different wind speeds on power generation efficiency by adjusting the speed of the blower. The solar panels are illuminated by halogen lamps to simulate the effect of sunlight on photovoltaic panels. By adjusting the light intensity and angle, students can study the output characteristics of photovoltaic panels under different lighting conditions, thereby understanding the working principles of solar cells and their performance in different environments.

1.2 Features

(1) Structural design: The training platform adopts an aluminum profile column frame structure to ensure overall stability and durability. The measuring instruments and training power supply are built-in and integrated, which not only saves space but also improves the convenience of use. The bottom is equipped with universal wheels, which makes the coordination between the units more flexible, very convenient to use, and not easy to damage.
(2) Complete configuration: The experimental circuits and devices are fully configured and can be used in combination to complete the training content of various subjects. Whether it is wind power generation or solar power generation experiments, they can be easily handled. This flexibility allows teachers to choose different experimental projects according to teaching needs and enrich the teaching content.
(3) Safety protection system: The MR1020R solar and wind hybrid energy training teaching system has a good safety protection system. All circuits and devices have been strictly designed and tested to ensure that there will be no safety hazards during use. In addition, the device is also equipped with complete safety protection measures, which can automatically cut off the power in abnormal situations to protect the safety of students.

II.Performance Parameter

2.1 Technical Parameters

1. Input power: Single phase, three wires, AC 220V±5%
2. Working conditions: temperature -10～+40℃±5% temperature ≤80℃
3. Ambient air: no corrosive, flammable gas, no large amount of conductive dust

2.2 Dimensions and Weight

Dimensions 1: 1200mmx1200mmx1900mm
Weight 1: <160kg
Dimensions 2: 1405mmx700mmx1415mm
Weight 2: <170kg
