Item No.: MR333E
Educational Photovoltaic System didactic equipment school equipment teaching renewable training equipment
Description
MR333E Educational Photovoltaic System didactic equipment school equipment teaching renewable training equipment
I.Product overview
This system can simulate solar energy generation process, enable students to understand on photovoltaic generation system directly, and be familiar with grid connection training equipment composition and run principle.


II.Technical data

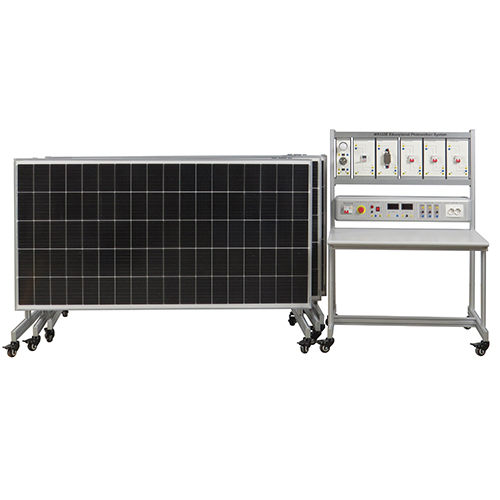

Solar energy generation set: consist of whole aluminum structure, photovoltaic adjustable panel(can adjust angle), with universal wheels under the bottom of aluminum frame, so it’s movable, and
with lockers to fix the position. External dimension: 1500×800×1000mm(Length× Width× Height)


III. System introduction
This system consist of three independent photovoltaic generation system connect in parallel, each generation system parallel value can be monitored by PC, to real time display electricity generation
value, generation time, max peak value etc.
1.Solar panel use aluminum holder to fix, with universal wheels under the holder, it’s flexible and can be locked by locker, solar panel angle can be adjusted.
2. Grid connection inverter is fixed on solar panel holder, through cable to connect, convert solar panel electricity to work frequency 220V AC electricity, and connect to market electricity.
3.Through communication module, can monitor electricity data in each inverter, and display in PC in real time, it’s easy for management, and support Ethernet monitor.
4.With educational software for photovoltaic training panel
