1. Product Overview

1.1 Overview

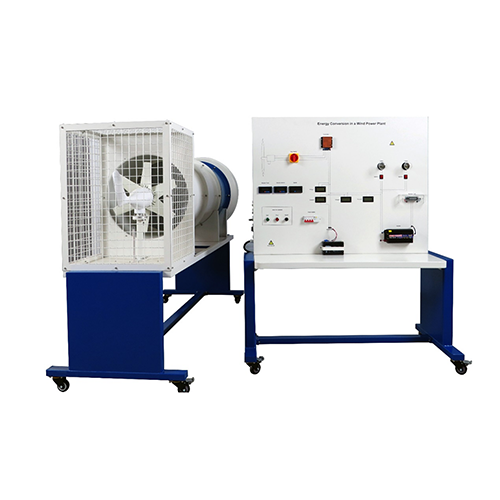

The experimental setup consists of a wind tunnel and a control unit. The wind tunnel contains a laboratory-scale wind power plant and an axial fan. The rotor and the generator are the core elements of a wind power plant. The control unit includes the control elements of the axial fan, components for the electrical energy storage and electrical consumers.
The axial fan generates the airflow required to set the rotor of the wind power plant in rotational motion. Air flow straighteners ensure a consistent airflow with low turbulence. The generator converts the kinetic energy of the rotor into electrical energy. The electrical energy is fed into an independent system that is not connected to the mains grid. A charge controller in the battery provides intermediate storage of the electrical energy. The electrical energy can be used by electrical loads. Two light bulbs can be used as consumers. Alternatively, external consumers (e.g. heaters) can also be connected. There is no provision for feeding into the public grid. The wind speed is varied by varying the speed of the fan. The following measured values are captured: wind speed before and after the rotor, rotor speed, voltage and current. The measured values are read out via a digital display Energy conversion in an axial fan in a wind power plant.

1.2 Features

1. The product has excellent electrical safety performance, and adopts excellent protection design and grounding reliability.
2. The product design is beautiful and simple in structure.
3. The product adopts anti-corrosion measures and solid materials, which are strong and durable, greatly extending the service life of the product.
4. The product has rich experimental modules and can complete test tasks under various conditions.

2. Performance Parameter

2.1 Technical Parameters

Power supply parameters: three-phase five-wire AC380V
Maximum volume flow: 5m3/s
Maximum power: 1,5kW Rotor: Ø 510mm Generator
Maximum output: 60W
Voltage: 12VDC
Maximum charging current: 5A Battery
Voltage: 12VDC
Capacity: 8Ah Power load (light bulb)
Voltage: 12VDC
Power: 55W each Measuring range
Wind speed: 1…40m/s (start the inverter button to start)
Speed: 0…3000min-1
Voltage: 0…20VDC
Current: -25…25A; 0…32A V, 50Hz, 3 phase; 400V, 60Hz, 3 phase 230V, 60Hz, 3 400 phase; UL/CSA
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).

2.2 Dimensions and Weight

Dimensions 1: 2630mm x 910mm x 1700mm
Weight 1: <340kg
Dimensions 2: 1480mm x 820mm x 1810mm
Weight 2: <192kg
