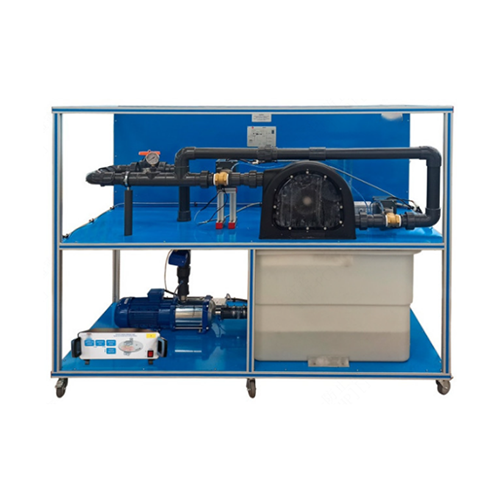

MRE250815G01 Hydro Plant Power Training Equipment Renewable Training Equipment Vocational Training Equipment
I.Overview The tests and investigations described below is ableto be carried out with the training hydropower test bench: The turbine is the use of hydraulic turbines. Impact of water turbine is a new kind of impulse turbine; The turbine will be the water pressure can be transformed into kinetic energy completely determined by the dealer. In the process of transformation, water jet nozzle in accelerated projected impact turbine blade tangential directly. The impact of the water jet is passed to the impact of water turbine. This is a pelton turbine demo impact the function of the water turbine model. The impact of the experimental unit of water turbine, needle mouth as water source of power, a pelton turbine and a transparent shell band brake on the front panel. Transparent cover to observe the impact of the water turbine, in the process of operation, through the nozzle adjusting handle to change the nozzle cross section, so as to adjust the flow of the nozzle needle to adjust. Analysis of the relationship between injection pressure andturbine mechanical power. Determination of Pelton turbine efficiency as a function of water jump, injector opening and load applied to the turbine. Analysis of the influence of water flow on turbine performance: the water flow rate supplied to the turbine is adjusted and its performance is measured in relation to the mechanical power applied to the turbine shaft. Study the relationship between injector opening and generated mechanical power: measuring of the mechanical power developed by the turbine while varying the injector openings. Optimization of turbine performance: testing with different combinations of water head height and injector opening to find the configuration that maximizes turbine performance. Study the behavior of sensors: Analyze the response of flow rate, pressure, velocity, and torque sensors under different operating conditions II.Technical data (1) Input power: three-phase five-wire system AC400V, 50Hz (2) The capacity of the whole machine: <1.5KVA (3) Weight: <260kg (4) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
III.Contained components * 1 kW Pelton turbine. * Generator * Brake. * Computer controlled water pump incl. motor protection switch * Frequency drive * Pressure sensor * Load cell - force sensor * Flow sensor * Speed sensor * Transparent water tank * Pressure gauge * Two x servo-driven valve * Security pressure switch * 1.5 to 2-inch PVC piping from the connection between the pump to the injectors * Operation, monitoring, and control via SCADA (incl. the required interface) * Single- or three phase grid feed-in * Single- or three-phase power supply for electrical machines * Standardized industrial components is used * All required interfaces and cables for computer control + data acquisition * Data management software, if necessary * Ensuring safety through 4 security systems (Mechanical, Electrical, Electronic and Software) * Power Quality Meter with graphic display and long-term memory (Three-phase measurement of current and voltage 3x400 V / 5 A (line-to-line and line-to-phase values), apparent, active and reactive power, recording function, peak and average value recording, load profile recording and event recording) The test bench frame is made of anodized aluminum and equipped with casters for ease of movement. The main metal elements is made of stainless steel. The test bench is supplied with detailed manuals in English and Mongolian describing the setup, commissioning and operation Students conduct at least four different experiments using the test bench. The corresponding instructions in Mongolian and English language for the experiments is included in the test bench offer. There is one copy for the students with the exercises and one for the teachers with the exercises with solutions. IV. Experiment list - a pelton turbine design and function Determination of the torque, power and efficiency Graphical representation of the characteristic curve Torque, power and efficiency The warranty is 12 months. All components and spare parts are available for 5 years
