1. Product Introduction
1.1 Product Description

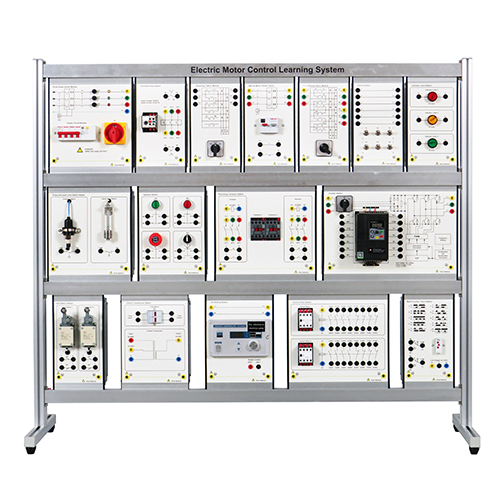

The MR559E Motor Control Learning System is a comprehensive training platform designed for industrial electrical control training, aiming to help learners master the core skills of relay control, circuit design, installation and debugging, and troubleshooting of AC motors. The system combines industrial standard hardware with modular learning units to cover motor control technology from basic to advanced.
1.2 Product Features
The Motor Control Learning System covers electrical relay control of AC motors in industrial, commercial and residential applications.
Learners learn industry-related skills, including how to operate, install, design and troubleshoot AC motor control circuits for various applications.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-phase five-wire AC 380V ±10% 50Hz
2.2 Dimensions and weight
Dimensions: 1315mm*450mm*1160mm
Weight: <40kg
3. Product component names and function introduction
3.1 Product main body
|
NO. |
Name |
Qty. |
|
1 |
Module |
16 |
|
2 |
Frame |
1 |
3.2 Product module part
|
NO. |
Name |
Qty. |
|
1 |
MR559E-Operation station |
1 |
|
2 |
MR559E-Control relay station |
1 |
|
3 |
MR559E-Indicator light station |
1 |
|
4 |
MR559E-Manual motor starter station |
1 |
|
5 |
MR559E-Control transformer starter station |
1 |
|
6 |
MR559E-Limiter station |
1 |
|
7 |
MR559E-Pressure level switch station |
1 |
|
8 |
MR559E-Multi-function time relay station |
1 |
|
9 |
MR559E-Reversible contactor station |
1 |
|
10 |
MR559E-Overcurrent relay station |
1 |
|
11 |
MR559E-Reversing switch station |
1 |
|
12 |
MR559E-Star-delta switch station |
1 |
|
13 |
MR559E-DC brake station |
1 |
|
14 |
MR559E-Inverter station |
1 |
|
15 |
MR559E-Manual fault insertion station |
1 |
|
16 |
MR559E-three-phase circuit breaker |
1 |
3.3 Product accessories
|
NO. |
Name |
Qty. |
|
1 |
Industrial safety padlock Lock beam diameter: 6mm, beam inner height: 38mm, two keys, open, red |
1 |
|
2 |
Fuse tube 10A 5*20 |
5 |
|
3 |
Fuse core 1A |
5 |
|
4 |
4mm safety electrical cable 1m double-ended red |
10 |
|
5 |
4mm safety electrical cable 1m double-ended green |
10 |
|
6 |
4mm safety electrical cable 1m double-ended yellow |
10 |
|
7 |
4mm safety electrical cable 1m double-ended black |
10 |
|
8 |
4mm safety electrical cable 1m double-ended blue |
10 |
|
9 |
4mm safety electrical cable 1m double-ended double color |
5 |
|
10 |
Digital multimeter UA9205 |
1 |
|
11 |
Electrician tool kit Contains 17 tools |
1 |
|
12 |
Industrial plug female |
1 |
|
13 |
Power cord |
1 |
4. Product teaching experiment list (see the experiment guide for details)
(1) Inverter drive motor test experiment
(2) Time relay control motor star-delta start test experiment
(3) Reversing switch control motor forward and reverse test experiment
(4) Limiter module and reversible contactor control motor forward and reverse test experiment
(5) Magnetic powder brake control experiment
(6) Liquid level switch and pressure switch test experiment
(7) Manual fault insertion module test experiment
(8) Star-delta switch control motor star-delta start test experiment
(9) Prony brake test experimen
