1. Introduction to the equipment
1.1 Overview
When a fluid flows through a pipe, pressure loss occurs due to internal friction and friction between the fluid and the wall. When calculating the pressure loss, we need to know the friction coefficient, which is a dimensionless number. The friction coefficient is determined using the Reynolds number, which describes the ratio of inertial force to friction force.
MR-HM 150.01 allows you to study the relationship between the pressure loss due to fluid friction and the flow velocity in the pipe. In addition, the friction coefficient of the pipe can be determined.
The experimental setup consists of a section of small diameter pipe in which laminar-turbulent flow occurs. The Reynolds number and friction coefficient in the pipe are determined from the flow velocity and pressure loss. In the case of turbulent flow, the pipe is fed directly from the water supply system. An overflow riser ensures the constant pressure of the water supply required for laminar flow. A valve can be used to adjust the flow rate.
The pressure in laminar flow is measured by a double-tube pressure gauge. In turbulent flow, the pressure is measured by a manometer with a clock mechanism.
1.2 Features
(1) Allows the user to study the relationship between the pressure loss due to fluid friction and the flow velocity in the pipe.
(2) The experimental setup consists of a small diameter pipe in which laminar and turbulent flow occur.
(3) In the case of turbulent flow, the pipe is supplied with water directly from the water supply system. The overflow riser ensures the constant water supply pressure required for laminar flow. The valve can be used to adjust the flow rate.
(4) The pressure in laminar flow is measured by a double-tube pressure gauge. In turbulent flow, the pressure is measured by a pressure gauge with a clock mechanism.
2. Technical parameters
Input power: single-phase AC 220V ±10%
Dimensions: 880*700*920 mm
Weight: ＜44kg
Working conditions: Ambient temperature: 10℃～30℃ Relative humidity: <75% (25℃)
3. Component list
3.1 Main part
| No |
Name |
| 1 |
Water storage tank |
| 2 |
Overflow port |
| 3 |
Turbulent flow bypass valve |
| 4 |
Water inlet |
| 5 |
Laminar flow control valve |
| 6 |

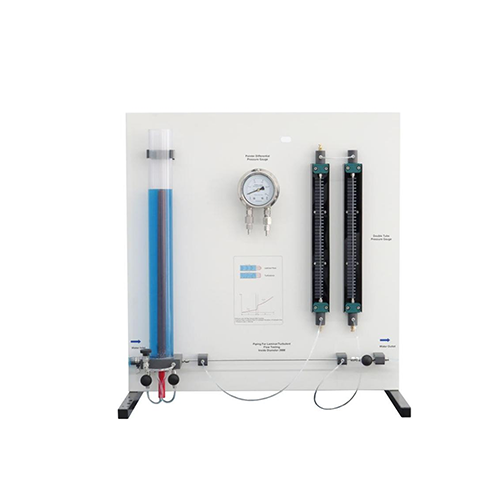

Experimental pipe section |
| 7 |
Drain valve |
| 8 |
Low pressure side pressure gauge |
| 9 |
High pressure side pressure gauge |
| 10 |
Silk screen |
| 11 |
Differential pressure gauge |
| 12 |
Exhaust valve |
3.2 basic module of fluid experiment
The basic module of fluid experiment mainly provides basic equipment for a single experiment, including:
| No |
Name |
| 1 |
Power control switch |
| 2 |
Switch control knob |
| 3 |
Working indicator light |
| 4 |
Flow control valve |
| 5 |
Pressure relief valve |
| 6 |
Gas level indicator for metering tank |
| Internal structure |
Storage tank with submersible pump |
| Note: This module needs to be purchased separately. It is more convenient to use it with the MR-HM 150.21 open channel flow visualization device |
4. Experiment list
Experiment 1: Laminar flow test experiment
Experiment 2: Turbulent flow test experiment
