Programmable Logic Controller Trainer Electrical Engineering Lab Equipment Teaching Equipment

Item No.: MR520E

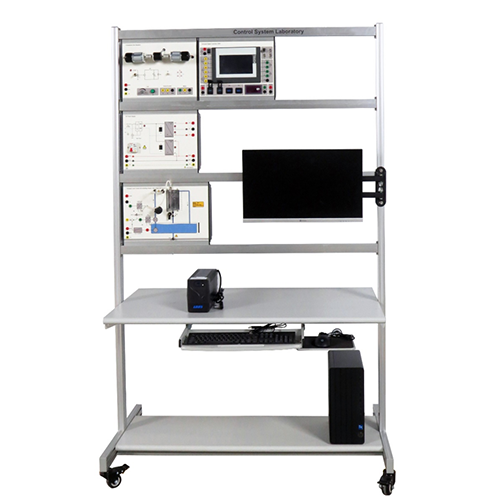

MR520E Control System Laboratory Electrical Engineering Training Equipment Didactic Equipment
Description
MR520E Control System Laboratory Electrical Engineering Training Equipment Didactic Equipment

1. Product Introduction
1.1 Product Description
The control system laboratory is dedicated to studying the principles of various control systems. Process control refers to the monitoring, adjustment and optimization of key parameters (such as temperature, pressure, flow, liquid level, etc.) in the industrial production process through automation technology and control strategies to ensure stable, efficient and safe operation of the production process. Process control is widely used in chemical, petroleum, power, pharmaceutical, food processing and other industries. Common control methods include PID control: Proportional-Integral-Differential (PID) control is the most commonly used control method and is suitable for most industrial processes. By adjusting the proportional (P), integral (I), and differential (D) parameters, the system response is optimized.
1.2 Product Features
1. The product has excellent electrical safety performance, and adopts excellent protection design and grounding reliability.
2. The product design is beautiful and simple in structure.
3. The product adopts anti-corrosion measures. The material is solid and durable, which greatly extends the service life of the product.
4. The product supports digitalization, and the adjustment parameters can be quickly set through software or screen.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire AC220V
Working environment conditions: ambient temperature -10℃+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and weight
Dimensions: 1320mm*770mm*2150mm
Weight: 140kg



3. Product component names and function introduction
3.1 Product main part
No Name Qty
1 Four-quadrant drive system module 1
2 Universal digital controller module 1
3 DC power supply module 1
4 Compact level control kit including container, temperature and flow modules 1
5 Computer monitor 1
6 UPS uninterruptible power supply 1
7 Keyboard 1
8 Mouse 1
9 Computer host 1
10 Universal caster 4
3.2 Product accessories
No Name Qty
1 Six-position socket strip 1
2 Power cable 1
3 Plug 1
4 Software USB flash drive 1
5 Digital multimeter battery 1
6 Network port expansion cable 3
7 USB expansion cable 1
8 Digital multimeter 1
9 HDMI cable 1
10 4mm safety connection cable - two-color 4
11 4mm safety connection cable - black 10
12 4mm safety connection cable - green 6
13 4mm safety connection cable - yellow 6
14 4mm safety connection cable - red 8
4. Product teaching experiment list (see the experimental instructions for details)
(1) Two-position and three-position control experiments
(2) PID1 liquid level control experiment
(3) Cascade liquid level control experiment
(4) Four-quadrant operation experiment
(5) Manual control of PID1 forward speed control experiment (open loop and closed loop difference)
(6) PID1 reverse control experiment
(7) Cascade forward speed control experiment (speed loop, current loop)
