Smart Grid Laboratory Electrical Lab Equipment Vocational Training Equipment

Item No.: MR525E

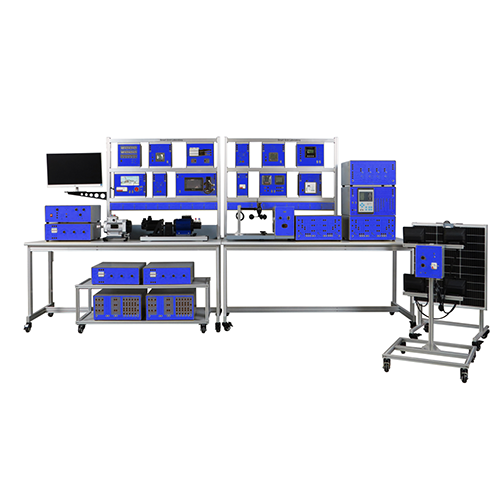

MR525E Smart Grid Laboratory Electrical Lab Equipment Vocational Training Equipment
Description
MR525E Smart Grid Laboratory Electrical Lab Equipment Vocational Training Equipment
  1. Product Overview
    1. Overview
Smart Grid Laboratory is a comprehensive teaching experiment platform designed for college teachers and students, covering the core links of smart grid power generation, transmission, distribution, protection and control. Through modular design, it supports multidisciplinary experimental research, including synchronous motors, photovoltaic power generation, reactive compensation, power quality analysis, etc., combined with SCADA software to achieve real-time monitoring and intelligent management, helping students to deeply understand the architecture and operation principles of smart grids.
This laboratory consists of more than 20 independent modules, including three-phase transformers, transmission models, feeder management relays, servo control systems, photovoltaic inverters, load modules, etc., which can simulate the power generation, transmission, compensation and protection scenarios of real power grids. It supports experiments such as multi-energy parallel connection, line loss analysis, and intelligent protection strategy research, and is equipped with industrial-grade hardware and software equipment (such as touch screens, PLCs, Modbus communication modules) to provide a complete smart grid teaching solution.
1.2 Feature
1. Modular design: Each functional module is independently detachable and supports free combination experiments.
2. Multi-energy access: supports multi-energy parallel experiments such as hydropower, photovoltaics, and synchronous generators.
3. Industrial-grade configuration: Adopts industrial-grade devices such as Ankerui microcomputer protection devices, Delixi electric meters, and PLCs.
4. Intelligent monitoring: Integrated SCADA software, real-time collection of voltage, current, power and other parameters, supports remote control and data visualization.
5. Safety protection: Equipped with leakage circuit breakers and overvoltage/overcurrent protection to ensure experimental safety.
6. Strong scalability: Supports Modbus communication protocol and can connect external sensors or expansion modules.





II. Performance Specifications
Equipment Parameters
Parameters Specifications
Input power Three-phase five-wire 380V±10%, 50Hz
Maximum power 3kVA
Communication interface RS485, Ethernet, ModbusRTU protocol
Working environment Temperature ℃ 0~40℃, humidity ≤85%RH (no condensation)
Protection level IP20 (laboratory bench)
Supporting software SCADA monitoring system (supports data recording, curve analysis, remote control)
Dimensions Frame: 2000mm*800mm*2020mm
Trolley: 1340mm*530mm*480mm
Weight ≤300kg
III. Components List and Detailed Introduction
3.1 Product Main Part
No. Name Quantity
1 PC 1
2 Product frame 2
3 Product module 12
4 Product chassis 9
5 Placement cart 1
6 Product motor 3
7  wind simulator 1
8  photovoltaic simulator 1
9 Signal bar to dual ring 1
3.2 Product Module Part
No. Name Quantity
1  Maximum Demand Meter 2
2  Power Circuit Breaker 2
3  Generator Synchronous Relay 1
4  Power Measurement Module 1
5  Reactive Power Controller 1
6  Communication MODBUS 1
7  Circuit Breaker 1
8  Three-Phase Power Supply Unit 1
9  Servo Controller 1
10  Photovoltaic Inverter 1
3.3 Product Motor Part
No. Name Quantity
1  three-phase synchronous generator 1
2  three-phase asynchronous motor 1
3  servo motor 1
3.4 Product Chassis Part
No. Name Quantity
1  three-phase transformer 2
2  transmission model (360km) 1
3  transmission model (100km) 1
4  resistive load box 1
5  capacitive load box 1
6  inductive load box 1
7  switchable capacitor battery 1
8  motor excitation power supply 1
9  feeder management relay 1
10  main power supply 1
