MR-HM 150.06 Study Of A Body Floating didactic equipment vocational education training equipment fluid mechanics laboratory equipment Description
• stability of a floating body
• determining the metacentre
• other floating bodies with different shapes of frame optionally available, MR-HM 150.39
In hydrostatics, the metacentre is an important point to be considered when assessing the stability of floating bodies.
Stability refers to the ability of a ship to right itself from a heeled position. The metacentre is the intersection of the buoyancy vector and the vessel’s axis of symmetry at a certain heel.

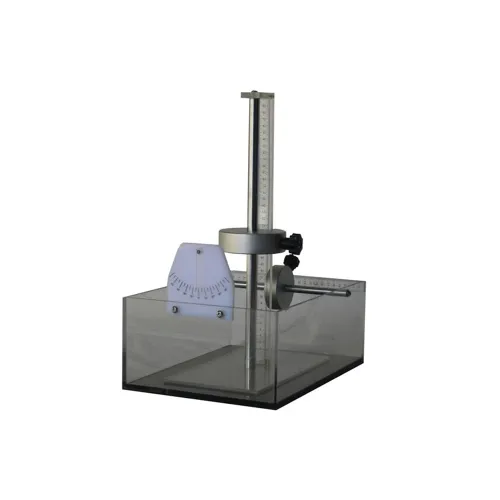

The MR-HM 150.06 unit can be used to study the stability of a floating body and to determine the metacentre graphically. In addition, the buoyancy of the floating body can also be determined. The experiment is easy to set up and is particularly suitable for practical work in small groups. The experiment is conducted in a tank filled with water. A transparent body with a rectangular frame cross-section is used as the floating body. Clamped weights that can be moved horizontally and vertically make it possible to adjust the centre of gravity and the heel.
The position of the clamped weights can be read on scales. A clinometer indicates the heel.
The accessory MR-HM 150.39 is available as an optional extra for further experiments with different frame shapes.
Learning objectives/experiments
• study and determination of
· buoyancy, centre of buoyancy
· centre of gravity, metacentre,stability
· heel
Specification
[1] investigating the stability of a floating body and determining the metacentre
[2] transparent floating body with rectangular frame cross-section
[3] one horizontally movable clamped weight for adjusting the heel
[4] one vertically movable clamped weight for adjusting the centre of gravity
[5] clinometer with scale for displaying the heel
[6] other floating bodies with different shapes of frame available as accessories: MR-HM 150.39 Technical data
Floating body
• LxWxH: 300x130x190mm
• mast height: 400mm
Horizontal scale: 180mm
Vertical scale: 400mm
Height scale of the floating body: 120mm
Clinometer scale: ±35°
Weights
• floating body without clamped weights: approx. 2,7kg
• vertical clamped weight: 575g
• horizontal clamped weight: 196g
Tank for water: 50L
LxWxH: 660x450x220mm (tank)
Weight: approx. 6kg
Scope of delivery
1 experimental unit
1 set of instructional material
