MR039 Temperature Measurement Training Panel Heat Transfer Laboratory Equipment Teaching Equipment
1. Product Introduction
1.1 Product Description
Temperature is a very important parameter in engineering. Temperature is a physical quantity that indicates the degree of hotness or coldness of an object. Microscopically, it is the intensity of the thermal motion of the object's molecules. Temperature can only be measured indirectly through certain characteristics of an object that change with temperature, and the scale used to measure the temperature value of an object is called a temperature scale.

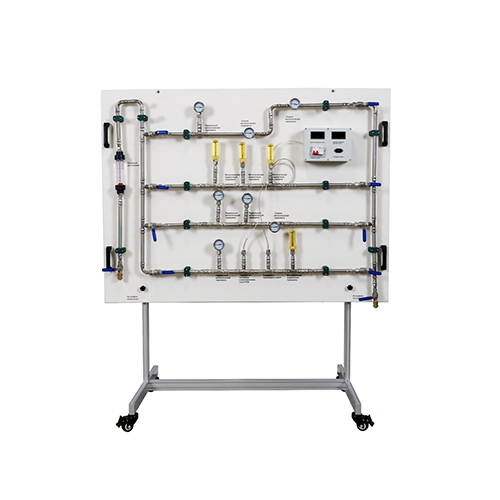

The MR039 temperature measurement training panel is a device used to measure temperature through a variety of thermometers. It is mainly used to study the functions, structural types and applications of bimetallic dial thermometers, liquid expansion thermometers, resistance thermometers and thermocouples, the measurement accuracy, sensitivity and measurement error installation methods, installation errors and responses of different thermometers.
1.2 Product Features
1. The product has a beautiful appearance design, is sturdy and durable.
2. The product uses a large number of corrosion-resistant materials, which greatly extends the service life of the equipment.
3. The product is equipped with a variety of temperature measurement elements, which can help make teaching simpler and easier to understand.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: AC220V
Measurement range:
Rotameter: 150...1600L/h
Thermometer measurement range:
Bimetallic dial thermometer: 0...100°C
Liquid expansion thermometer: 0...100°C
Resistance thermometer Pt100: -50...400°C
Thermocouple type K: 0...1200°C
2.2 Dimensions and weight
Dimensions: 1650x700x1850mm
Weight: about 100kg
3. Product component
3.1 Product main part
| No |
Name |
| 1 |
Bimetallic dial thermometer |
| 2 |
Liquid flow meter |
| 3 |
Liquid expansion thermometer |
| 4 |
Electrical waterproof box |
| 5 |
Regulating valve |
| 6 |
Quick-change connector |
| 7 |
PT100 resistance thermometer |
| 8 |
K-type thermocouple thermometer |
| 9 |
Profile frame |
| 10 |
Universal wheel |
3.2 Product electrical part
| No |
Name |
| 1 |
PT100 temperature meter |
| 2 |
K temperature meter |
| 3 |
Circuit breaker |
| 4 |
Power cord plug |
3.3 Product accessories
- Product Configuration List
| No |
Name |
Qty |
| 1 |
Bimetallic dial thermometer |
7 |
| 2 |
Liquid flow meter |
1 |
| 3 |
Liquid expansion thermometer |
4 |
| 4 |
Electrical waterproof box |
1 |
| 5 |
Regulating valve |
10 |
| 6 |
Quick-change connector |
2 |
| 7 |
PT100 resistance thermometer |
1 |
| 8 |
K-type thermocouple thermometer |
1 |
| 9 |
Universal wheel |
4 |
| 10 |
PT100 temperature counter display |
1 |
| 11 |
K-type temperature counter display |
1 |
| 12 |
Circuit breaker |
1 |
| 13 |
Power cord |
1 |
- Product teaching experiment list
(1) Equipment preparation before experiment
(2) Liquid expansion thermometer measurement
(3) Bimetallic dial thermometer measurement
(4) Resistance thermometer measurement (PT100 type)
(5) Thermocouple thermometer measurement (K type)
