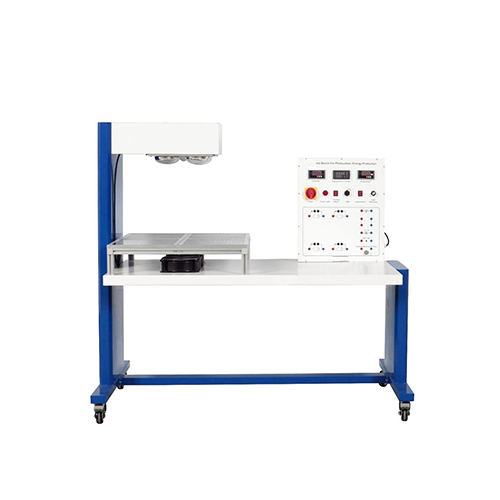

MR315E Test bench for photovoltaic energy production educational equipment lab equipment electronic trainer kit 1. Performance parameters
Dimensions: 1600mm*700mm*1550mm
Weight: <100kg
Power supply: AC220V 50hz 2. Product introduction
The photovoltaic energy production test bench consists of four freely connectable solar cells, bypass diodes, downstream diodes, and analog light sources as power generation equipment. Voltmeters, ammeters, thermostats, variable loads, etc. constitute a control box and control box components It can be connected freely through K4 terminal. The temperature can be set by the thermostat to keep the solar cell accurately within a certain temperature range. The brightness of the simulated light source can be adjusted through the governor to study the influence of light on the power generation of solar cells. The control box is equipped with a USB waterproof connector, which can be connected to the software to monitor the measured value of the control box measuring device in real time. 3. Can do experiments
1. The influence of light on solar cells
2. The influence of temperature on solar cells
3. The physical effects of series and parallel solar cells
