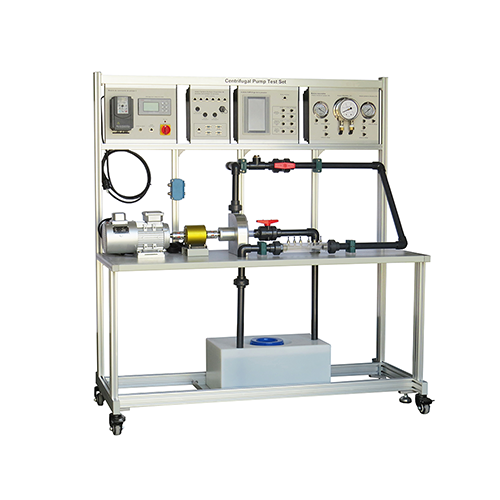

MR-H47 Centrifugal Pump Test Set Hydrodynamics Laboratory equipment Didactic Equipment Vocational Training Equipment I. Product overview 1.1 Overview Teaching bench for studying autonomous and mobile two-stage centrifugal pumps, allowing students to learn the operating characteristics of centrifugal pumps in series or parallel. Ergonomic workbench with very complete instrumentation. 1.2 Features (1) The experimental device adopts a profile structure, which has a simple structure and a large load-bearing capacity. (2) Real-time monitoring of waterway measurement data for easy observation. II. Performance Parameters (1) Dimensions: 1500MM*650MM*1640MM (2) Overall capacity: <2KVA (3) Weight: <150kg (4) Working conditions: ambient temperature -10℃～+40℃ (5) Input power supply: single-phase three-wire system 220V±10% 50Hz III.Product Composition Overall Pump one Control Box Pressure Instrument Hanging Box Pressure Digital Display Transmission Hanging Box VDAS-F Data Acquisition Module Torque Speed Transmitter Torque Speed Sensor Inverter Motor Centrifugal Pump Water Inlet Venturi Experiment Module Water Tank Accessories (Test lead, RJ45 communication cable, USB cable and Allen key) IV.Experiments That Can be Done Experiment 1 The Operation of the Pump Experiment 2 Venturi Experiment Experiment 3 Use the Pressure Gauge Hanging Box to Measure Experiment 4 Use Pressure Digital Display Transmission Hanging Box to Measure Experiment 5 Software Connection and Use Experiment 6 Software Monitoring and Use (MR-H47 as an example) Experiment 7 Use of Software Curve Graph (MR-H47as an example) Experiment 8 Software Data Recording (MR-H47as an example) Experiment 9 Software Data Export (MR-H47as an example) Experiment 10 Use of Digital Input Experiment 11 External Analog Input Experiment 12 Control the Use of Communication Unit
