MR3117 Flocculation Test Unit Fluids Engineering Experiment Equipment Vocational Training Equipment Didactic Equipment
1. Product Introduction
1.1 Product Description
The flocculation test equipment is a laboratory instrument used to simulate and optimize the flocculation process in the water treatment process. By controlling parameters such as stirring speed, time, and dosage of reagents, the optimal flocculation conditions are determined. It is widely used in sewage treatment, drinking water purification, industrial wastewater treatment and other fields.

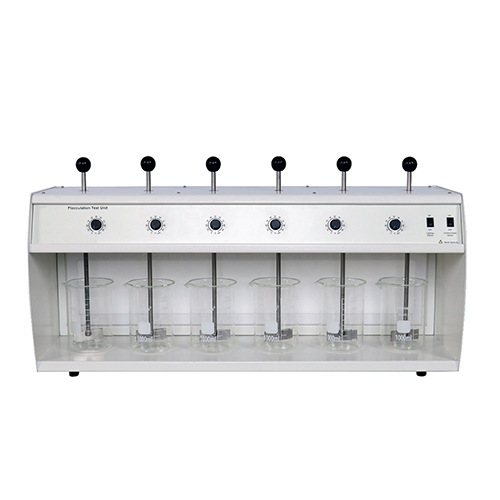

MR3117 flocculation test device is a six-unit coagulation test mixer that simulates the flocculation process and provides multiple groups of synchronous experiments (6 groups), which can independently set different speeds. The flocculation experiment can be completed systematically to provide reliable parameters for actual water treatment projects.
1.2 Product Features
1. The product has an excellent appearance design, beautiful and generous.
2. The product has modular functions and can be used with other experimental modules.
3. The product uses more durable materials, which can greatly extend the service life of the equipment.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire AC220V
Working environment conditions: Ambient temperature: 10℃～30℃ Relative humidity ＜75% (25℃).
2.2 Dimensions and weight
Dimensions: 950mm x 285mm x400mm
Weight: about 30kg
3. Product component names and function introduction
3.1 Product main part
No. Name Qty
1 Manual lift lever 6
2 Speed potentiometer 6
3 Light switch 1
4 Power switch (there is another one behind the device) 2
5 Stirring cup 6
6 Stirring blades 6
7 Light 1
3.2 Product accessories
No. Name Qty
1 Test tube 6
2 Test tube rack 1
3 Stopwatch 1
4 Lubricant 1
5 Test tube stopper 6
6 Aluminum ferric chloride flocculant 1
7 Alum water purification flocculant 1
8 PAM organic flocculant 1
9 Power cord 1
10 Fuse 5
4. Product teaching experiment list (see the experimental instruction manual for details)
(1) Comparison of the treatment effects of various flocculants
(2) Comparison of flocculation effects at different stirring speeds
(3) Changes in pH value after treatment with different flocculants
