Dynamo Brake Educational Lab Equipment Demonstrational Equipment Electrical Installation Lab

1. Product Introduction
1.1 Product Description

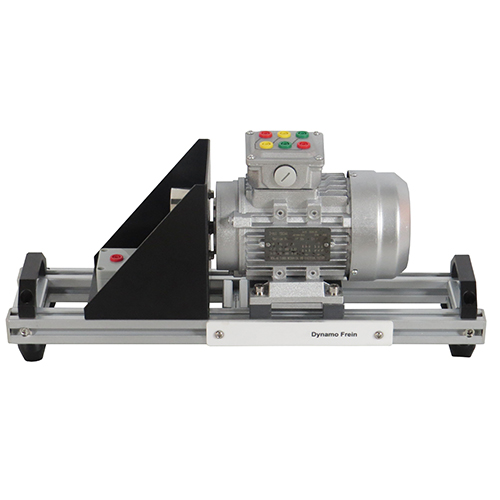

This product is a three-phase asynchronous brake motor that integrates a YS6344 series three-phase asynchronous motor with a DCY-83 type power-off brake. This motor is designed for use in automated equipment and teaching and training devices requiring rapid stopping, precise positioning, or power-off safety protection. Its star-delta dual-voltage connection method is particularly suitable for teaching and demonstrating motor starting control principles.
1.2 Product Features
Integrated Design: The motor and brake are integrated into one unit, resulting in a compact structure and easy installation.
Rapid Braking: The power-off brake provides fast and reliable braking force, ensuring safe and precise stopping of the equipment.
Practical for Teaching: Available in both star and delta wiring configurations, it is an ideal platform for learning motor principles and star-delta reduced-voltage starting circuits.
Rugged and Durable: The silver metal casing provides excellent protection, suitable for frequent use in industrial environments and laboratories.
2. Technical Specifications
2.1 Basic Technical Parameters

2.2 Equipment External Parameters
