MR611E DC-Excited Generator Educational Lab Equipment Demonstrational Equipment Electrical Installation Lab

INQUIRY

Description

MR611E DC-Excited Generator Educational Lab Equipment Demonstrational Equipment Electrical Installation Lab

1. Product Introduction
1.1 Product Description
A shunt-wound DC generator is a self-excited DC generator. Its core feature is that its field winding (the winding that generates the magnetic field) is connected in parallel with the armature winding.
1.2 Product Features
By adjusting the rheostat connected in series with the field winding, the excitation current can be smoothly changed, thereby adjusting the generator's output voltage over a wide range.
2. Technical Specifications
2.1 Technical Parameters
Power Supply Parameters: Single-phase two-wire DC 220V ±5% 50Hz
Weight: <20kg

3. Product Component Names and Functions
3.1 Main Body of the Product

No.	Name	Quantity
1	Power supply terminals	4
2	Main body	1

3.2 Product Introduction

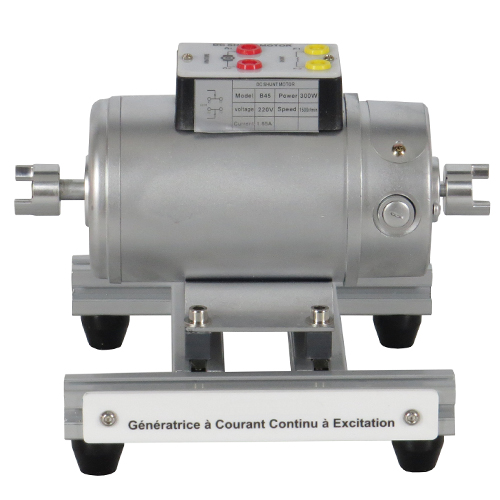

1. DC-Excited Generator
Parameters: DC-Excited Generator can be used as a motor and generator. Rated voltage/current: 220VDC/1.65A, generating voltage: 220V, rated speed: 2000rpm.
Function: Used as a load.
3.3 Product Accessories

No.	Name	Quantity
1	Black 4mm electrical safety connection cable	2
2	Red 4mm electrical safety connection cable	2
3	Fixing Strip	1

4. List of Product Teaching Experiments (See Experiment Manual for details)
(1) Use of Génératrice à courant continu à excitation
