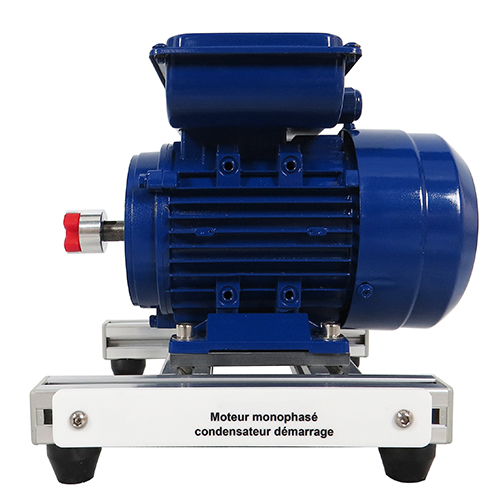

Single-Phase Motor Capacitor Starting Educational Equipment for Schools Instructional Package Electrical Installation Lab

1. Product Introduction
1.1 Product Description
A single-phase AC power supply applied to a single set of windings can only generate a pulsating magnetic field, producing no starting torque, and the motor cannot rotate on its own when stationary.
By artificially adding an auxiliary winding and connecting it to a series capacitor to shift the phase, a phase difference is created between the currents in the main and auxiliary windings, resulting in a nearly circular rotating magnetic field. This allows for autonomous starting and continuous operation. These motors are collectively called single-phase capacitor motors and are the most commonly used drive motors in 220V civilian equipment.
1.2 Product Features
It can directly use household 220V single-phase electricity, eliminating the need for a three-phase power supply;
It features a simple structure, small size, and convenient installation and maintenance;
2. Technical Specifications
2.1 Technical Parameters
Power supply parameters: Single-phase two-wire AC 220V 50Hz
2.2 Dimension and Weight
Dimension：280mm*235mm*250mm
Weight：<10kg
