Group: Synchronous Motors Alternator Non Autoexicited Low Power 230V/400V + DC Coumpound Motor Educational Lab Equipment Demonstrational Equipment Electrical Installation Lab

1. Product Overview
1.1 Product Description

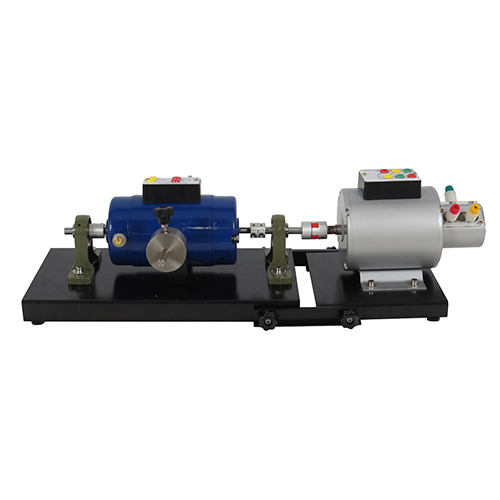

A DC motor with a rated voltage of 220V, designed for coupled operation with a three-phase asynchronous motor. During coupled operation, the asynchronous motor and the generator must maintain synchronized rotational speeds to ensure stable power transmission. Standard terminal blocks and coupling assemblies are included to facilitate installation and electrical connection. The rated speed is 1500 rpm, with an allowable operational speed deviation of ±10%, making it suitable for low-power drive applications where speed precision requirements are relatively flexible.
1.2 Product Features
Strong Coupling Compatibility: Can be directly coupled with a three-phase asynchronous motor to achieve an integrated electromechanical drive solution.
Speed Synchronization: The asynchronous motor and generator must operate at the same speed to ensure coordinated system performance.
Stable DC Output: Suitable for low-power DC loads or experimental testing purposes.
Easy Installation: Equipped with terminal blocks and couplings to simplify electrical and mechanical assembly.
Speed Tolerance Design: Supports a rated speed of 1500 rpm with an allowable operational deviation of ±10%, accommodating various operating conditions.
2. Technical Specifications
2.1 Basic Technical Parameters

2.2 Device Physical Specifications
