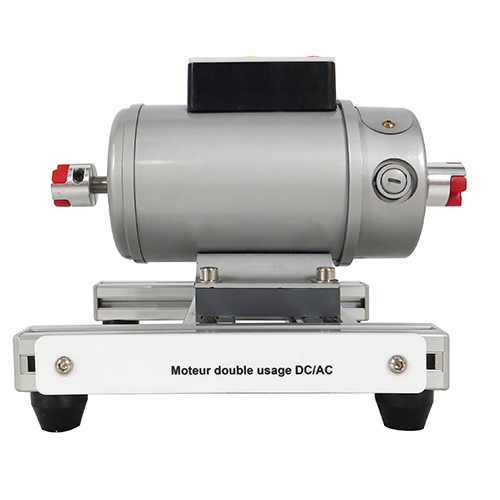

MR712E Dual-Purpose DC/AC Motor Technical Skills Training Equipment Demonstrational Equipment Electrical Skills Training
1. Product Introduction
1.1 Product Description
AC/DC universal motors, also known as series-wound motors (general-purpose motors), can operate normally when powered by both AC and DC power. They are widely used in electric drills, angle grinders, vacuum cleaners, mixers, and power tools.
1.2 Product Features
It can operate with any DC power supply of the same level as 220V AC.
2. Technical Specifications
2.1 Technical Parameters
Power supply parameters: Single-phase two-wire AC 220V/DC 220V
2.2 Dimension and Weight
Dimension：280mm*235mm*220mm
Weight：<10kg
3. Product Component Names and Functions
3.1 Main Body of the Product
|
No.
|
Name
|
Quantity
|
|
1
|
Panel
|
1
|
|
2
|
Bearing
|
1
|
|
3
|
Housing
|
1
|
3.2 Product Accessories
|
No.
|
Name
|
Qty.
|
|
1
|
4mm electrical safety connection cable, 1 meter, double-ended, black
|
2
|
|
2
|
4mm electrical safety connection cable, 1 meter, double-ended, red
|
2
|
4. Product Teaching Experiment List (See Experiment Manual for details)
(1) Introduction to Dual-Purpose DC/AC Motors
(2) Operation Experiment of Dual-Purpose DC/AC Motors (DC Connection)
(3) Operation Experiment of Dual-Purpose DC/AC Motors (AC Connection)
